Installation [11/2021 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Coat the O-ring of the transmission wire with Toyota Genuine ATF WS.
   2. Install the transmission wire to the automatic transaxle case sub-assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

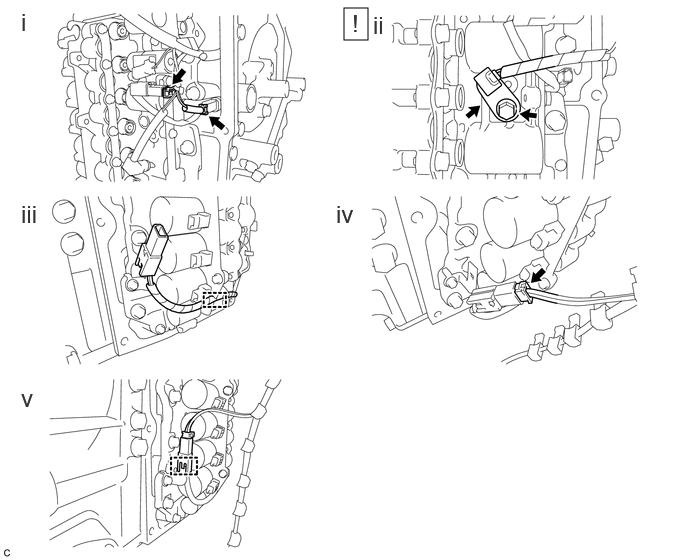

   1. Connect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.
   2. Install the temperature sensor to the transmission valve body assembly with the bolt and temperature sensor clamp.

      Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

      NOTE:

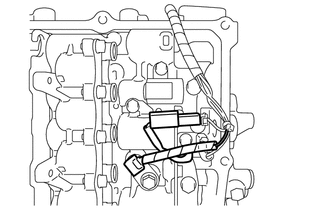

      To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, pass the transmission revolution sensor (NC) wire under the transmission wire (temperature sensor wire) as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   3. Engage the clamp to connect the transmission wire (oil pump with solenoid assembly) to the solenoid lock plate.
   4. Connect the transmission wire connector.
   5. Engage the wire harness clamp to connect the transmission wire (oil pump with solenoid assembly).

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

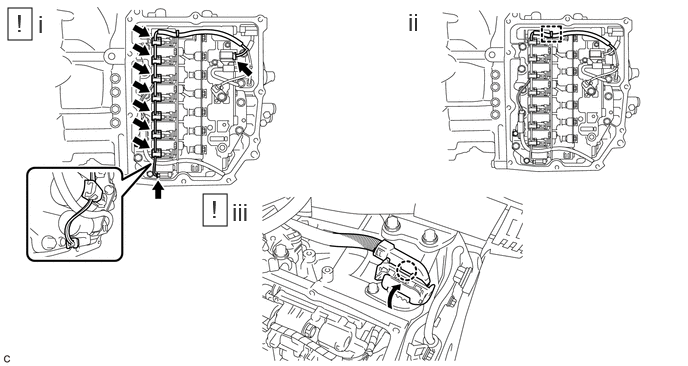

   1. Connect the 9 solenoid valve connectors.
      NOTE:

      • To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, do not let the transmission wire ride up over the area shown in the illustration.
      • To prevent it from being pinched between the transmission case side cover and the automatic transaxle case sub-assembly, do not let the transmission wire protrude toward the transmission case side cover installation surface.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Do not let transmission wire protrude into this area.

   2. Engage the clamp to connect the transmission wire to the solenoid lock plate.
   3. Connect the transmission wire connector, rotate the lever and engage the claw.

      HINT:

      Rotate the lever until the claw of the transmission wire connector makes a click sound.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Area to be cleaned

   -

   -

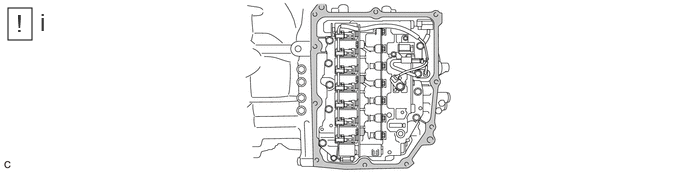

   1. Clean the transmission case side cover installation surface of the automatic transaxle case sub-assembly.
      NOTE:

      Completely remove any oil or grease from the contact surfaces of the automatic transaxle case sub-assembly.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Temporarily install a new transmission case side cover to the automatic transaxle case sub-assembly with the 2 bolts ((A) and (B)).
      NOTE:

      To avoid damaging the gasket, prevent it from contacting the surrounding area during installation procedures.

   2. Temporarily install the 8 bolts (C).
3. Fig 1: Transmission Case Side Cover Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Tighten the 10 bolts in the order shown in the illustration.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Oil Cooler Union Bolt

   *2

   Gasket

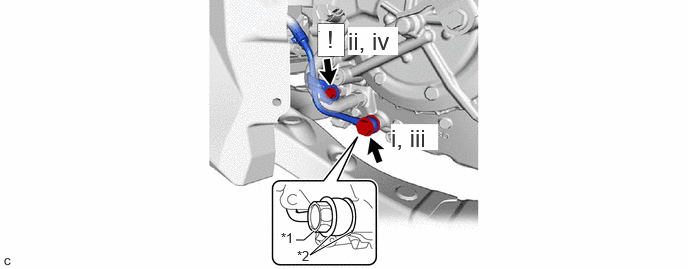

   1. Pass the oil cooler union sub-assembly through 2 new gaskets and temporarily install it to the automatic transaxle case sub-assembly with the oil cooler union bolt.
   2. Temporarily install the oil cooler union sub-assembly bracket portion to the automatic transaxle case sub-assembly with the bolt.
   3. Tighten the oil cooler union bolt.

      Torque: 22.6 N.m (230 kgf/cm, 17 ft.lbf)

   4. Tighten the bolt.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)
