Removal [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ] - DISCONNECT NO. 2 EARTH WIRE
See step 2
- REMOVE NO. 2 ENGINE COVER
Refer to PROCEDURE - Step 2 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 2 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]

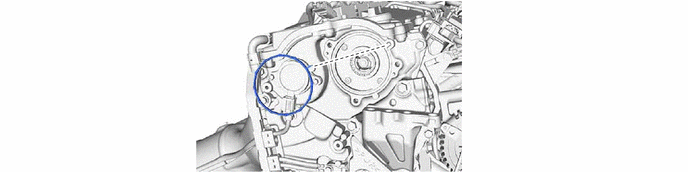

- REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY NOTE:
If the cam timing control motor with EDU assembly has been struck or dropped, replace it.
- REMOVE CAM TIMING CONTROL MOTOR O-RING
