Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 9 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 10 [03/2024 - ]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 11 [03/2024 - ]

  5. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

    Refer to REMOVAL [11/2021 - ]

  6. REMOVE NO. 1 RADIATOR BRACKET
    1. GTY1076646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT VACUUM HOSE
    1. GTY1076633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. GTY1077193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location - -
      1. Support the engine assembly with transaxle using a jack and wooden block.
      2. Remove the 4 bolts and front engine mounting bracket.

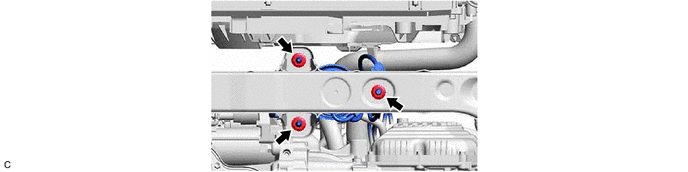

  9. REMOVE FRONT ENGINE MOUNTING INSULATOR
    1. GTY1076628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE STAY
    1. GTY1076632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
