Removal [03/2023 - ]: Procedure

  1. REMOVE NO. 1 FLOOR UNDER COVER
    1. GTY1060064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    Refer to PROCEDURE - Step 1
  3. REMOVE REAR DRIVE SHAFT ASSEMBLY LH

    Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]

  4. REMOVE REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  5. REMOVE REAR STABILIZER BAR

    Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]

  6. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 7 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 7 [03/2024 - ]
  7. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  8. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [11/2021 - ]

  9. REMOVE NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 8

  10. DISCONNECT ENGINE ROOM MAIN WIRE
    Refer to PROCEDURE - Step 4
  11. REMOVE CONNECTOR COVER ASSEMBLY
    Refer to PROCEDURE - Step 10
  12. CHECK TERMINAL VOLTAGE
    Refer to PROCEDURE - Step 11
  13. INSTALL CONNECTOR COVER ASSEMBLY
    Refer to PROCEDURE - Step 8
  14. CONNECT ENGINE ROOM MAIN WIRE
    Refer to PROCEDURE - Step 31
  15. INSTALL NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 18

  16. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Insulate the disconnected connectors with insulating tape.

    1. GTY1066978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal - -
      1. Remove the 2 bolts and HV floor under wire from the rear traction motor with transaxle assembly.
        NOTE:
        • Do not damage the terminals, interlock connector or rear traction motor with transaxle assembly during disconnection.
        • Do not touch the waterproof seal or terminals of the connector.
        • Do not allow any foreign matter or water to enter the rear traction motor with transaxle assembly.
        • Although the connector may feel loose, this is not due to a malfunction.
      2. Disengage the clamp.
  17. SEPARATE FRAME WIRE
    1. GTY1062057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a w/ Height Control Sensor - -
  18. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

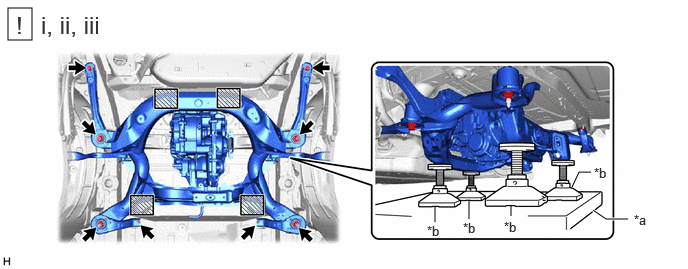

    1. GTY1207511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter *b Attachment
      Attachment and Wooden Block Placement Location - -
      1. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
        WARNING:
        • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
        • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
        GTY976625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.

      2. Remove the 4 bolts, 4 nuts, rear suspension member brace LH, rear suspension member brace RH, rear suspension arm bracket sub-assembly LH and rear suspension arm bracket sub-assembly RH.
      3. Slowly lower the rear suspension member sub-assembly.
        NOTE:

        When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

  19. REMOVE REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY
    Refer to PROCEDURE - Step 5
  20. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 2 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]
  21. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  22. REMOVE DIFFERENTIAL SUPPORT MEMBER CUSHION
    1. GTY1059616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH
    1. GTY1062533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion *b Hold
      Turn - -
      1. Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion rib.
        NOTE:

        Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      2. Install SST as shown in the illustration.
        • SST: 09830-10010
          1. 09830-01010
          2. 09830-01040
          3. 09830-01050
        • SST: 09950-40011
          1. 09951-04010
          2. 09952-04010
          3. 09954-04010
          4. 09955-04061
          5. 09958-04011
        NOTE:

        Apply molybdenum grease to the threads and tip of the SST center bolt before use.

      3. Using SST, remove the rear suspension member front body mounting cushion while applying lubricant into the clearance between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly.
        • SST: 09830-10010
          1. 09830-01010
          2. 09830-01040
          3. 09830-01050
        • SST: 09950-40011
          1. 09951-04010
          2. 09952-04010
          3. 09954-04010
          4. 09955-04061
          5. 09958-04011
        NOTE:
        • Set the claws of SST into the rear suspension member sub-assembly securely as shown in the illustration.
        • Tighten SST slowly and evenly.
        • Be careful as the rear suspension member front body mounting cushion may fly out.
        • The rear suspension member front body mounting cushion cannot be reused.
  24. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  25. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
    1. GTY1061980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold - -
      Turn - -
      1. Install SST as shown in the illustration.
        • SST: 09950-00020
        • SST: 09950-00030
        • SST: 09950-60011
          1. 09951-00330
        NOTE:

        Apply molybdenum grease to the threads and tip of the SST center bolt before use.

      2. Using SST, remove the rear suspension member rear body mount cushion LH while applying lubricant into the clearance between the rear suspension member rear body mount cushion LH and the rear suspension member sub-assembly.
        • SST: 09950-00020
        • SST: 09950-00030
        • SST: 09950-60011
          1. 09951-00330
        NOTE:
        • Tighten SST slowly and evenly.
        • Be careful as the rear suspension member rear body mount cushion LH may fly out.
        • The rear suspension member rear body mount cushion LH cannot be reused.
  26. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  27. REMOVE DIFFERENTIAL MOUNT CUSHION
    1. GTY1062375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Suspension Member Sub-assembly - -
      *a Turn *b Hold
      Turning Direction Front of Vehicle
      SST Bolt Position - -
      1. Using SST, remove the differential mount cushion from the rear suspension member sub-assembly.
        • SST: 09316-12010
        • SST: 09570-24011
        NOTE:
        • Do not bring SST into contact with the rear suspension member sub-assembly.
        • Before using SST, apply grease to SST bolt.
        • Set SST in the correct direction.
        • Do not tilt the SST bolt.
        • Do not reuse the differential mount cushion.
  28. REMOVE HOLE PLUG
