Removal [11/2021 - 03/2024]: Procedure

  1. REMOVE REAR WHEEL

    Refer to REMOVAL [11/2021 - 03/2024]

  2. REMOVE NO. 1 LOWER CONTROL ARM COVER

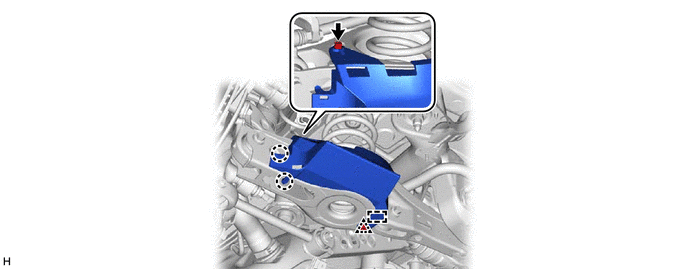

    1. GTY1061728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for LH Side with Height Control Sensor)

    Refer to REMOVAL [11/2021 - ]

  4. SEPARATE REAR STABILIZER LINK ASSEMBLY
    Refer to PROCEDURE - Step 4
  5. REMOVE REAR COIL SPRING
    See step  5
  6. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  7

  7. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

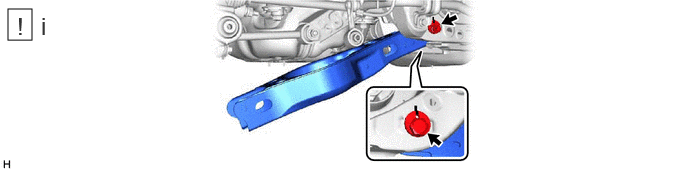

    1. GTY1062912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.
        NOTE:

        Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

  8. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

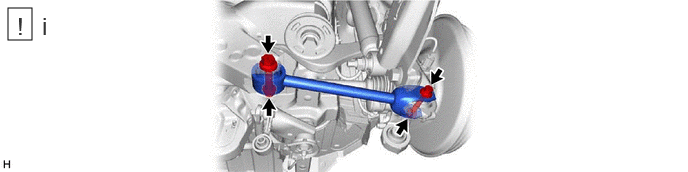

    1. GTY1062336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
