Removal [09/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

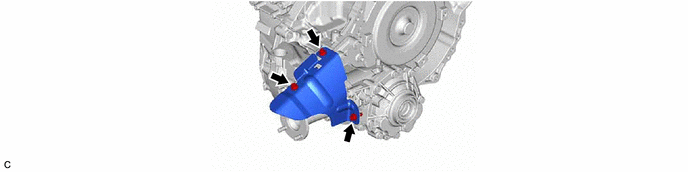

  2. REMOVE PROPELLER SHAFT HEAT INSULATOR
    1. GTY1199874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

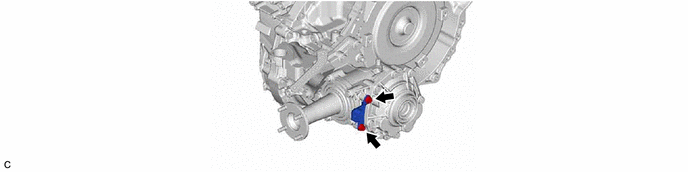

  3. REMOVE PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
    1. GTY1199859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  5. REMOVE TRANSFER ASSEMBLY
    1. GTY1129519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
