Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 13

  3. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 11

  4. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY
    1. GTY1237256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 15 bolts and 2 nuts from the No. 2 oil pan sub-assembly.
      2. Insert the blade of an oil pan seal cutter between the oil pan sub-assembly and No. 2 oil pan sub-assembly. Cut through the applied sealer and remove the No. 2 oil pan sub-assembly.
        NOTE:

        Be careful not to damage the contact surfaces of the oil pans.

  6. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 49

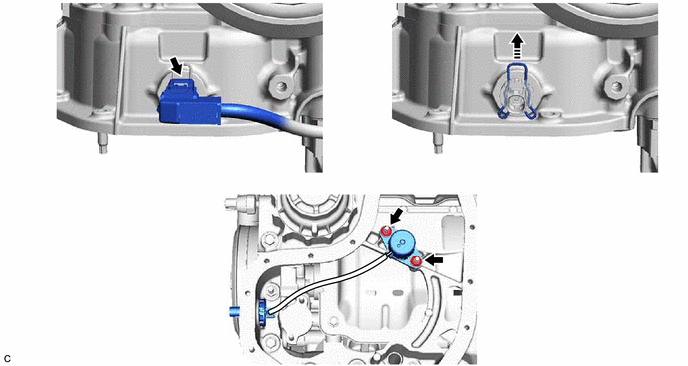

  7. REMOVE ENGINE OIL LEVEL SENSOR
    1. GTY1232507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
