Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 6

  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  3. REMOVE EXHAUST MANIFOLD ASSEMBLY LH

    Refer to REMOVAL [12/2023 - ]

  4. REMOVE WATER HOSE CLAMP

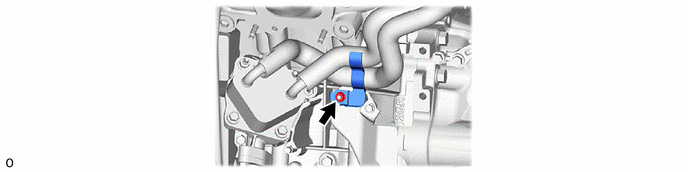

    1. GTY1237098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1241021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1237100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE OIL COOLER ASSEMBLY

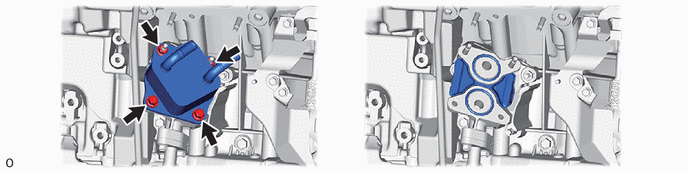

    1. GTY1233673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
