Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

    Refer to PRECAUTION [09/2023 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE NO. 2 INVERTER PROTECTOR

    See step  6

  4. CHECK TERMINAL VOLTAGE
    See step  7
  5. INSTALL NO. 2 INVERTER PROTECTOR

    See step  19

  6. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  8. REMOVE NO. 2 CHARGER INTAKE DUCT

    See step  8

  9. REMOVE NO. 2 CONVERTER COOLING INTAKE DUCT

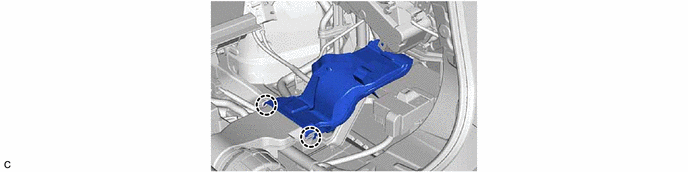

    1. GTY1228676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE EV CONVERTER PROTECTOR
    1. GTY1239262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 CONVERTER COOLING INTAKE DUCT
    1. GTY1228674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT FLOOR WIRE
    1. GTY1233836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

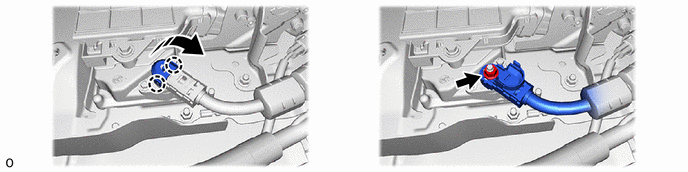

    2. GTY1233835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. GTY1233837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. DISCONNECT NO. 2 FLOOR WIRE
    1. GTY1233942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE DC/DC CONVERTER COOLING EXHAUST DUCT
    1. GTY1240355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT HV SOCKET INVERTER WIRE
    WARNING:

    Be sure to wear insulated gloves.

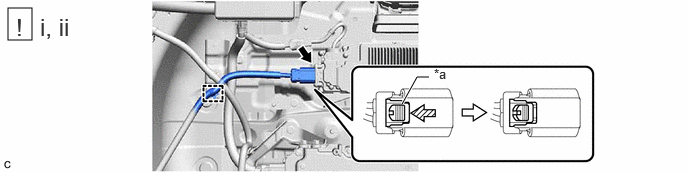

    1. GTY1228376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock - -
      Slide - -
      1. Slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.
      2. Disengage the clamp.
  16. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1228664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE DC/DC CONVERTER ASSEMBLY WITH BRACKET
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    If the DC/DC converter assembly has been struck or dropped, replace it.

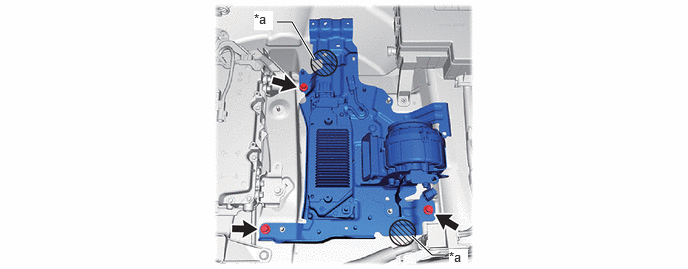

    1. GTY1229485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold Here - -
  18. REMOVE DC/DC CONVERTER COOLING BLOWER ASSEMBLY
    NOTE:
    • Be sure not to touch the fan part of the DC/DC converter cooling blower assembly.
    • Do not lift the DC/DC converter cooling blower assembly using the wire harness.
    • Do not allow any foreign matter to enter the DC/DC converter cooling blower assembly.
    1. GTY1230191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE DC/DC CONVERTER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    If the DC/DC converter assembly has been struck or dropped, replace it.
    1. GTY1230769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cooling Fin - -
      1. Disengage the 2 clamps.
      2. Remove the 4 bolts and DC/DC converter assembly.
        NOTE:

        Do not damage the cooling fin.
