Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

    Refer to PRECAUTION [09/2023 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE NO. 2 INVERTER PROTECTOR

    See step  6

  4. CHECK TERMINAL VOLTAGE
    See step  7
  5. INSTALL NO. 2 INVERTER PROTECTOR

    See step  19

  6. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  8. REMOVE NO. 2 CHARGER INTAKE DUCT
    1. GTY1228670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 CHARGER EXHAUST DUCT
    1. GTY1228668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 CHARGER EXHAUST DUCT
    1. GTY1228669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 FLOOR WIRE
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1240348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the lock, move the lock lever as shown in the illustration, and then disconnect the connector (A).
      2. Disconnect the 2 connectors.
      3. Disengage the clamp.
  12. DISCONNECT EV CONVERTER PROTECTOR

    See step  10

  13. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1240637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock - -
      Slide - -
      1. Using a screwdriver, slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.
      2. Disengage the clamp.

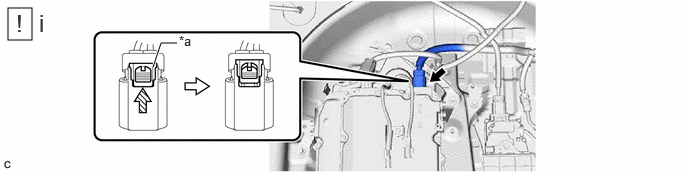

    2. GTY1240028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock - -
      Slide - -
      1. Using a screwdriver, slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.
  14. REMOVE NO. 1 CHARGER INTAKE DUCT
    1. GTY1237269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  15. REMOVE ELECTRIC VEHICLE CHARGER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1228656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
