Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
for T24A-FTS:

Refer to PROCEDURE - Step 7

for 2GR-FXS:

Refer to PROCEDURE - Step 7
REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
for T24A-FTS:

Refer to PROCEDURE - Step 8

for 2GR-FXS:

Refer to PROCEDURE - Step 8
REMOVE NO. 1 ENGINE UNDER COVER
for T24A-FTS:

Refer to PROCEDURE - Step 9

for 2GR-FXS:

Refer to PROCEDURE - Step 9
DRAIN COOLANT (for Intercooler (T24A-FTS))
Refer to PROCEDURE - Step 4
DRAIN COOLANT (for Inverter (2GR-FXS))
Refer to PROCEDURE - Step 1
REMOVE REAR DRIVE SHAFT ASSEMBLY RH
Refer to REMOVAL [09/2023 - ]

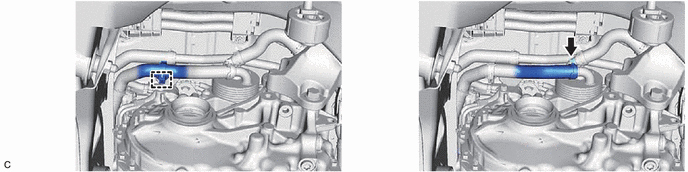

DISCONNECT NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY

for HEV Model:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for PHEV Model:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

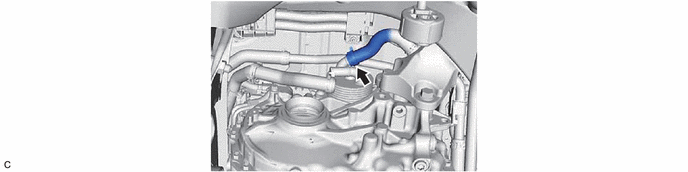

DISCONNECT NO. 1 INVERTER COOLING HOSE ASSEMBLY (for HEV Model)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 13 INVERTER COOLING HOSE (for PHEV Model)

REMOVE REAR TRANSAXLE MOTOR COOLING COOLER

HINT:
Use a container to catch any coolant and hybrid transaxle fluid which flow out of the rear transaxle motor cooling cooler.

Using a T40 "TORX" socket wrench, remove the 3 bolts and rear transaxle motor cooling cooler from the rear transaxle with motor and inverter assembly.
Remove the 2 O-rings from the rear transaxle motor cooling cooler.
