Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2023 - ]
REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH
Refer to PROCEDURE - Step 11
REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 12
DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 9
REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 33
REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH
Refer to PROCEDURE - Step 34
DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 11
REMOVE DECK SIDE TRIM COVER LH
Refer to PROCEDURE - Step 36
DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 13
REMOVE DECK TRIM POCKET COVER

Refer to PROCEDURE - Step 38
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 39
REMOVE ROPE HOOK

Refer to PROCEDURE - Step 40
REMOVE ROPE HOOK ASSEMBLY

Refer to PROCEDURE - Step 41
REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 42

REMOVE FUEL PUMP CONTROL ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

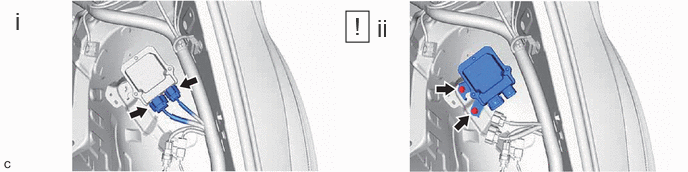

Disconnect the 2 fuel pump control ECU connectors.
Remove the 2 bolts and fuel pump control ECU from the vehicle body.
NOTE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

REMOVE FUEL PUMP CONTROL ECU BRACKET
