Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3

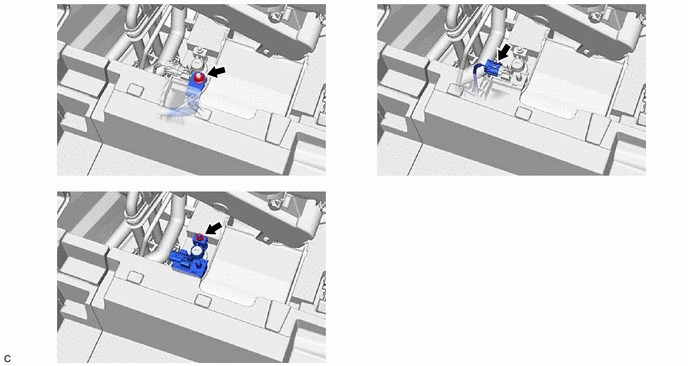

  4. REMOVE BATTERY STATE SENSOR ASSEMBLY
    1. GTY1234119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
