Installation [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2)

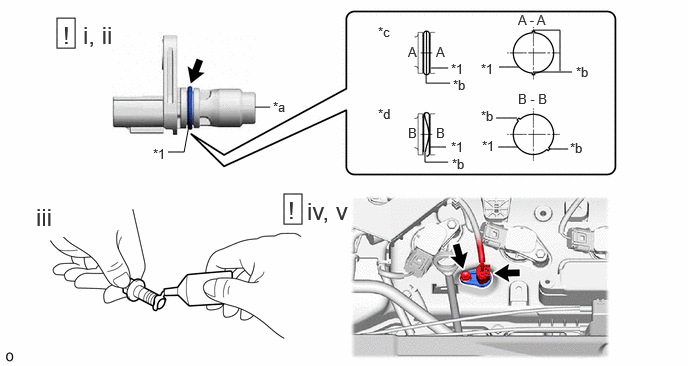

    1. GTY1229017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring - -
      *a VVT Sensor Tip *b Seam
      *c Correct *d Incorrect
      1. Perform this procedure only when reusing the VVT sensor.

        1. Clean the O-ring groove of the VVT sensor.

        NOTE:

        Make sure the O-ring groove is free of foreign matter.

        2. Install a new O-ring to the VVT sensor.

        NOTE:

        Set the O-ring on the tip of the VVT sensor and roll it into the O-ring groove with bare hands to install it.

        3. Check if the O-ring is twisted.

        HINT:

        Check the entire circumference of the seam of the O-ring for twisting.

      2. Apply a light coat of engine oil to the O-ring.
      3. Apply adhesive to threads of the bolt.

        Adhesive

        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      4. Install the VVT sensor to the cylinder head cover sub-assembly LH with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        NOTE:
        • If the VVT sensor has been struck or dropped, replace it.
        • Make sure the O-ring is not cracked or moved out of place when installing.
      5. Connect the VVT sensor connector.
  2. INSTALL VVT SENSOR (for Intake Side of Bank 2)

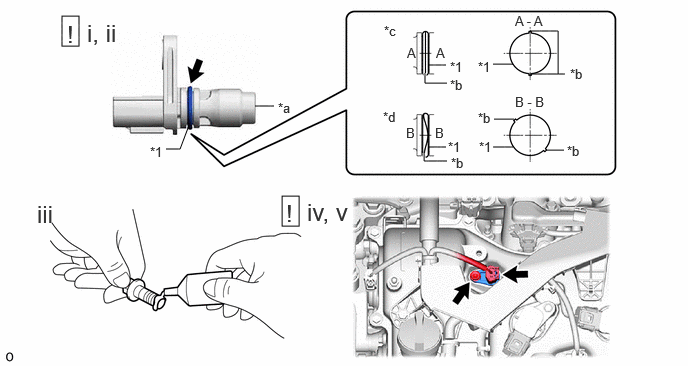

    1. GTY1229194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring - -
      *a VVT Sensor Tip *b Seam
      *c Correct *d Incorrect
      1. Perform this procedure only when reusing the VVT sensor.

        1. Clean the O-ring groove of the VVT sensor.

        NOTE:

        Make sure the O-ring groove is free of foreign matter.

        2. Install a new O-ring to the VVT sensor.

        NOTE:

        Set the O-ring on the tip of the VVT sensor and roll it into the O-ring groove with bare hands to install it.

        3. Check if the O-ring is twisted.

        HINT:

        Check the entire circumference of the seam of the O-ring for twisting.

      2. Apply a light coat of engine oil to the O-ring.
      3. Apply adhesive to threads of the bolt.

        Adhesive

        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      4. Install the VVT sensor to the cylinder head cover sub-assembly LH with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        NOTE:
        • If the VVT sensor has been struck or dropped, replace it.
        • Make sure the O-ring is not cracked or moved out of place when installing.
      5. Connect the VVT sensor connector.
  3. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6

  4. INSTALL V-BANK COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 84
