Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+ and 2024 Lexus TX 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

    Refer to PRECAUTION [09/2023 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 6

  4. CHECK TERMINAL VOLTAGE
    Refer to PROCEDURE - Step 7
  5. INSTALL NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 19

  6. REMOVE REAR NO. 1 SEAT ASSEMBLY
  7. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  8. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  9. REMOVE JUNCTION BLOCK COVER
    WARNING:

    Be sure to wear insulated gloves.
    1. GTY1239253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

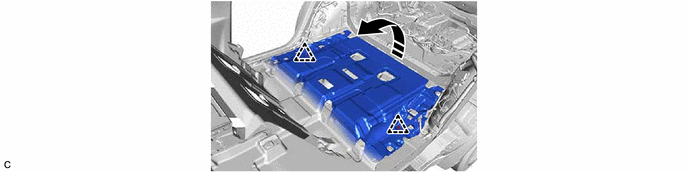

    2. GTY1238775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. GTY1241379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. GTY1241377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

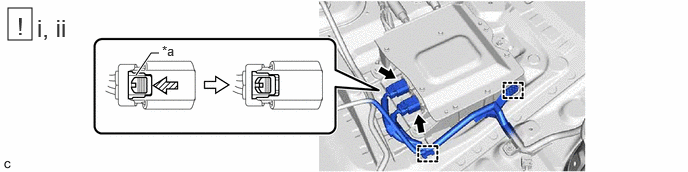

    5. GTY1233602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock - -
      Slide - -
      1. Slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the 2 No. 1 junction block assembly connectors.
      2. Disengage the 2 clamps.
    6. GTY1233941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT NO. 3 HIGH VOLTAGE FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Insulate the disconnected high-voltage connector with insulating tape.
    1. GTY1229636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
        NOTE:

        Insulate the disconnected high-voltage connector with insulating tape.

      2. Remove the nut and disconnect the No. 3 high voltage floor under wire.
  11. DISCONNECT FLOOR UNDER WIRE
    Refer to PROCEDURE - Step 18
  12. REMOVE NO. 1 JUNCTION BLOCK ASSEMBLY
    1. GTY1228606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
