Replacement [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 1

  3. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.
      GTY1229760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the hybrid vehicle transaxle assembly.

  4. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

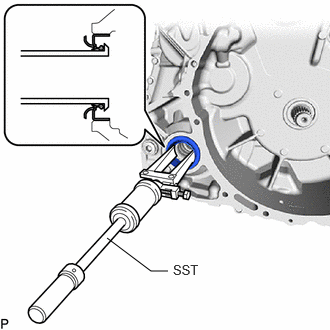

    1. Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.
      GTY1238101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the hybrid vehicle transaxle assembly.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Coat the lip of a new front drive shaft oil seal RH with a small amount of MP grease.
    2. Using SST and a hammer, install the front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.
      GTY1236563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      *b Inner Lip
      *c Outer Lip
      • SST: 09316-10010
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the outer lip of the front drive shaft oil seal RH is not pinched by SST.
        GTY745251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Correct
        *b Incorrect
        *c Outer Lip
      • Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal RH.
      • Do not install the front drive shaft oil seal RH at an angle.
      • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal RH.
  6. INSTALL FRONT DRIVE SHAFT OIL SEAL LH
    1. Coat the lip of a new front drive shaft oil seal LH with a small amount of MP grease.
    2. Using SST and a hammer, install the front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.
      GTY1233510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      *b Inner Lip
      *c Outer Lip
      • SST: 09649-17010
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.
        GTY745251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Correct
        *b Incorrect
        *c Outer Lip
      • Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
      • Do not install the front drive shaft oil seal LH at an angle.
      • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.
  7. INSTALL DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 40

  8. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [12/2023 - ]
