Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

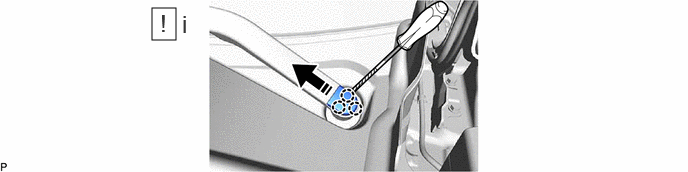

    1. GTY1229150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the front wiper arm head cap.
    2. Use the same procedure for the RH side and LH side.
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

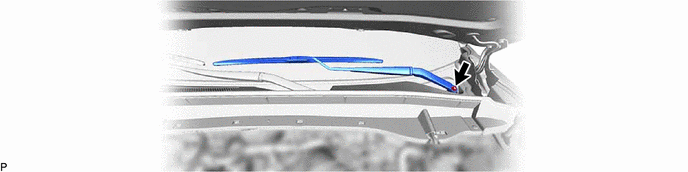

    1. GTY1230107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

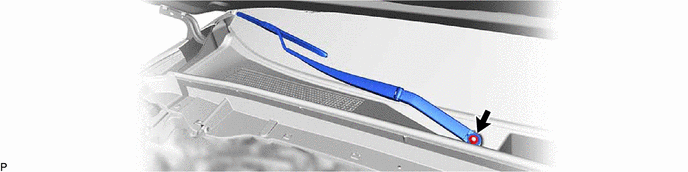

    1. GTY1230104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FENDER REAR SPLASH SHIELD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  5. REMOVE FENDER REAR SPLASH SHIELD SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  6. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

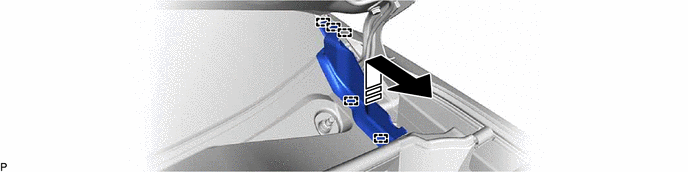

    1. GTY1231115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  7. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
    1. Use the same procedure as for the LH side.
  8. REMOVE FRONT FENDER SPLASH SHIELD SEAL FRONT LH

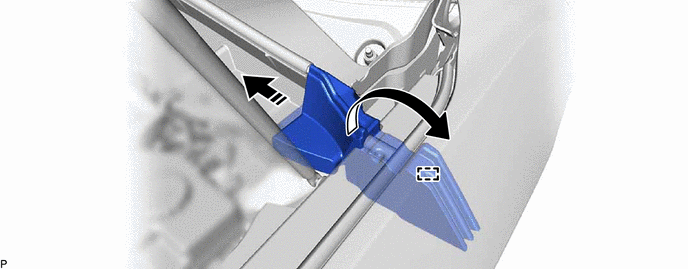

    1. GTY1236274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rotation Direction Remove in this Direction
  9. REMOVE FRONT FENDER SPLASH SHIELD SEAL FRONT RH
    1. Use the same procedure as for the LH side.
  10. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

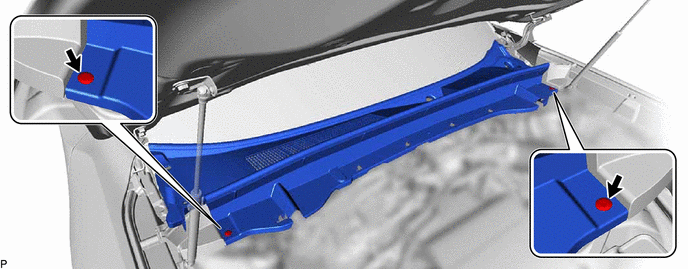

    1. GTY1230145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

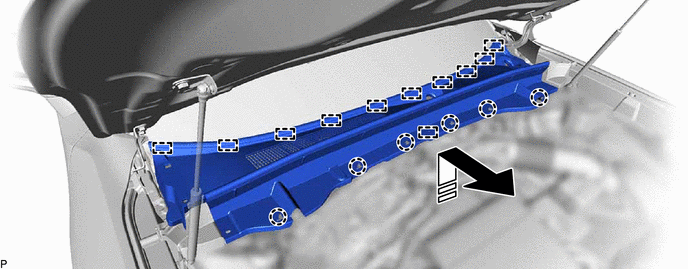

    2. GTY1228004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  11. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    NOTE:

    Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.

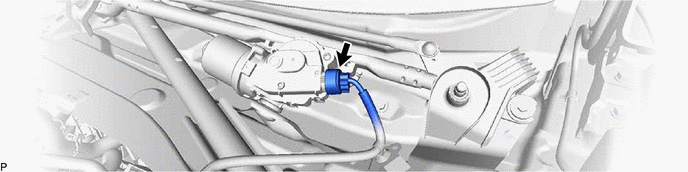

    1. GTY1230139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

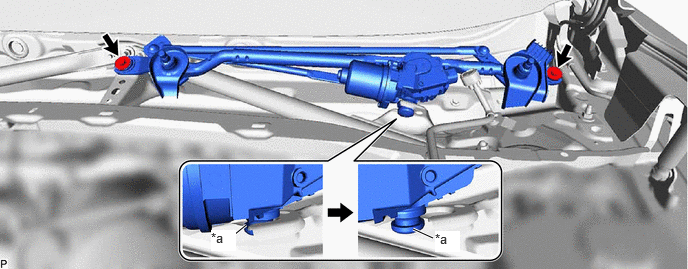

    2. GTY1240762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Motor Grommet - -
  12. REMOVE FRONT WIPER CRANK SUB-ASSEMBLY

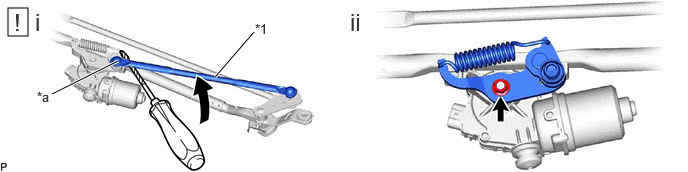

    1. GTY1232512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Windshield Wiper Link Rod - -
      *a Pivot of Front Wiper Crank Sub-assembly - -
      1. Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 windshield wiper link rod from the pivot of the front wiper crank sub-assembly as shown in the illustration.
      2. Remove the nut and front wiper crank sub-assembly.
  13. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

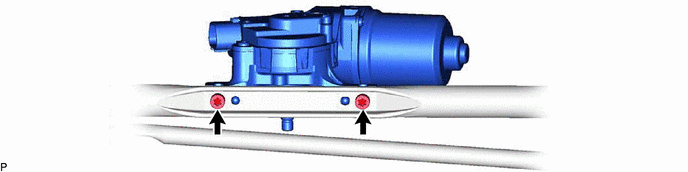

    1. GTY1230151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
