Adjustment [09/2023 - ]: Procedure

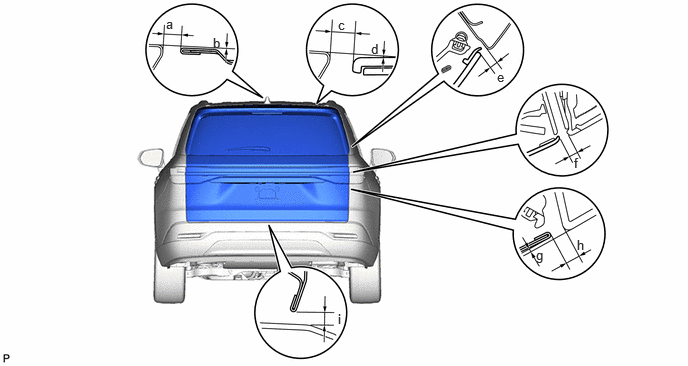

1. Check that the clearance measurements of areas a through h are within each standard range.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   -

   STANDARD CLEARANCE



   Area	Measurement	Area	Measurement
   a	6.8 to 9.8 mm (0.268 to 0.386 in.)	b	-0.5 to 2.5 mm (-0.0197 to 0.0984 in.)
   c	5.65 to 10.65 mm (0.222 to 0.419 in.)	d	-0.95 to 4.05 mm (-0.0374 to 0.159 in.)
   e	3.1 to 8.1 mm (0.122 to 0.319 in.)	f	3.3 to 8.3 mm (0.130 to 0.327 in.)
   g	-1.55 to 3.45 mm (-0.0610 to 0.136 in.)	h	2.75 to 7.75 mm (0.108 to 0.305 in.)
   i	3.85 to 8.85 mm (0.152 to 0.348 in.)	-	-

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 33

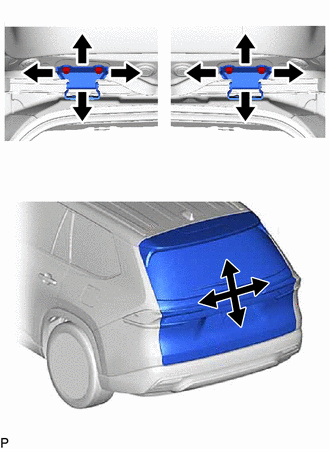

1. Loosen the 4 hinge bolts on the back door and adjust the back door position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the 4 hinge bolts on the vehicle body after adjustment.

   Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

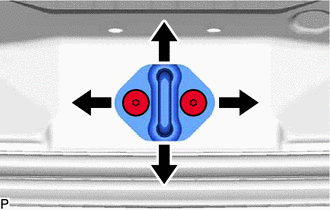

3. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a brass bar and a hammer, hit the striker to adjust its position.
5. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

   Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
