Removal [09/2023 - ]: Procedure

for Sport Package: Refer to REMOVAL [09/2023 - ]

except Sport Package: Refer to REMOVAL [09/2023 - ]

1. w/o Automatic Headlight Beam Level Control System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Screw	*b	Bolt
   	Protective Tape		Disengage in this Direction

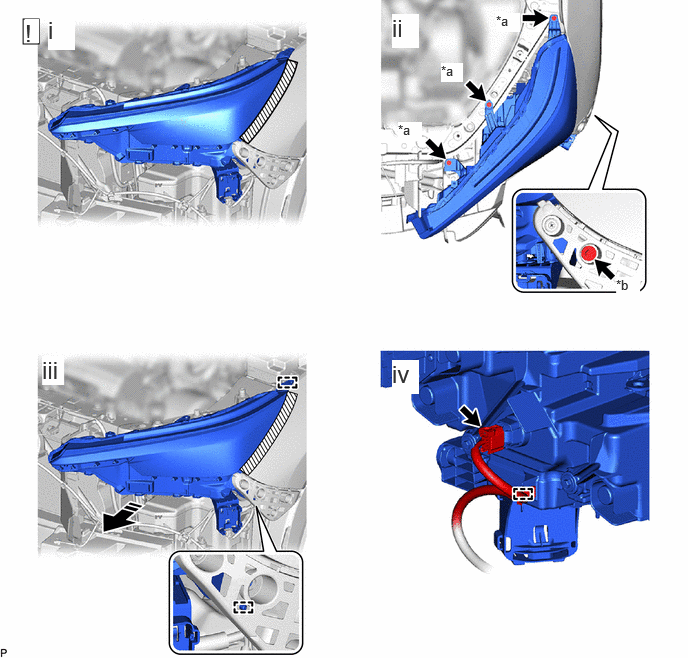

   1. Apply protective tape around the headlight assembly as shown in the illustration.

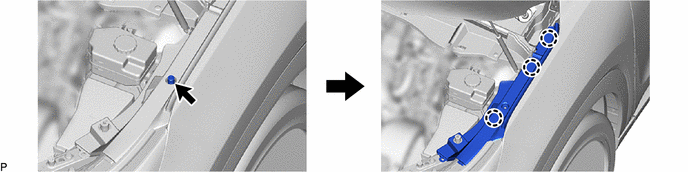

   2. Remove the bolt and 3 screws.
   3. Disengage the 2 guides as shown in the illustration.
   4. Disconnect the connector and clamp to remove the headlight assembly.
2. w/ Automatic Headlight Beam Level Control System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Screw	*b	Bolt
   *c	Connector Lock Lever	-	-
   	Protective Tape		Disengage in this Direction
   	Disconnect in this Direction	-	-

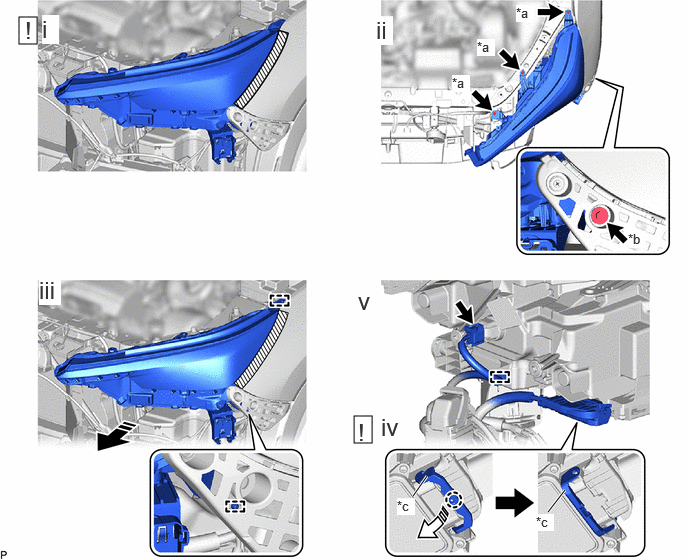

   1. Apply protective tape around the headlight assembly as shown in the illustration.
   2. Remove the bolt and 3 screws.
   3. Disengage the 2 guides as shown in the illustration.
   4. Disengage the claw, pull down the connector lock lever to disconnect the connector as shown in the illustration.
   5. Disconnect the connector and clamp to remove the headlight assembly.
