Removal [09/2023 - ]: Procedure

See step  1

1. except Sport Package:

   Refer to REMOVAL [09/2023 - ]

2. for Sport Package:

   Refer to REMOVAL [09/2023 - ]

NOTE: Do not drop the front side radar sensor. If the front side radar sensor is dropped, replace it with a new one.

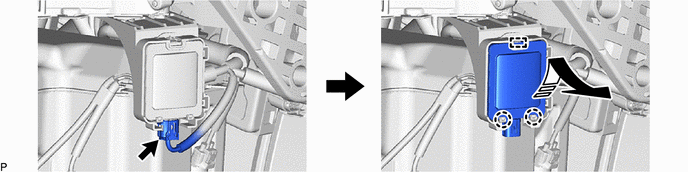

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

2. The orientation for the RH side is the opposite of the LH side.

HINT:

Perform this procedure only when replacement of the front side radar sensor bracket LH is necessary.

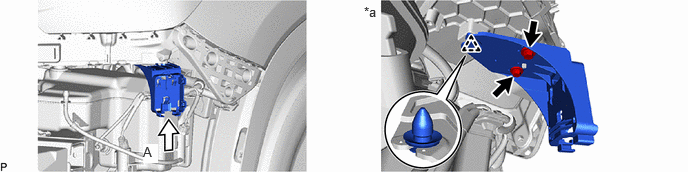

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   View A

   -

   -

1. Use the same procedure as for the LH side.
