Removal [12/2023 - ]: Procedure

  1. DISCONNECT AC CHARGER INLET CABLE

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE POWER SUPPLY CONNECTOR SUPPORT PLATE
    Refer to PROCEDURE - Step 24
  3. REMOVE SPOT LIGHT ASSEMBLY

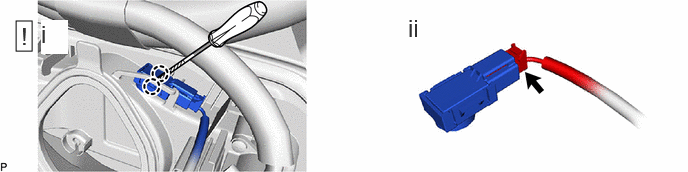

    1. GTY1230609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws
      2. Disconnect the connector to remove the spot light assembly.
