Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

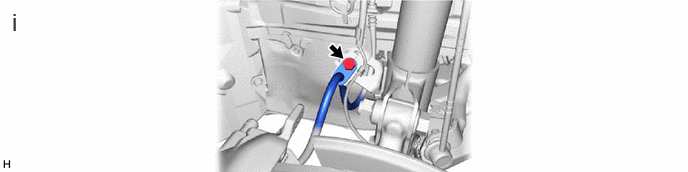

   1. Remove the bolt and disconnect the front flexible hose from the front flexible hose bracket.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

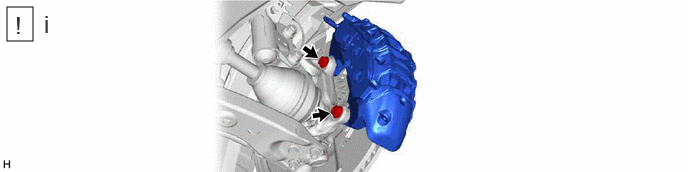

   1. Loosen the bolts on the lower side of the disc brake cylinder assembly and remove the bolts on the top side.
      NOTE:

      Do not excessively loosen the bolts on the lower side of the disc brake cylinder assembly.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

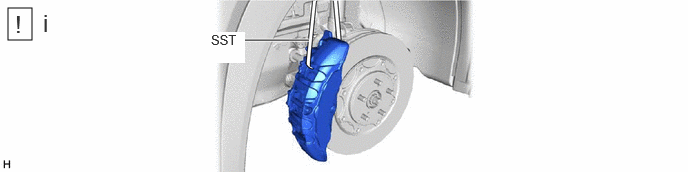

   1. Tilt the disc brake cylinder assembly and install SST as shown in the illustration.
      • SST: 09727-00110

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

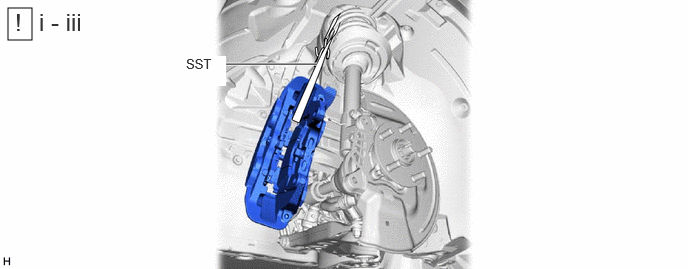

   1. Install SST to the front shock absorber with coil spring.
      NOTE:

      The front shock absorber with coil spring may become damaged if the metal part of SST contacts it. Therefore, install it so that the metal part does not contact the front shock absorber with coil spring.

   2. Remove the bolt on the lower side of the disc brake cylinder assembly and disconnect it.
      NOTE:

      • Do not apply excessive force to the flexible hose.
      • If there is no looseness on the flexible hose, adjust the length of SST.
   3. Remove a front disc.

      Refer to PROCEDURE - Step 7 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 7 [12/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

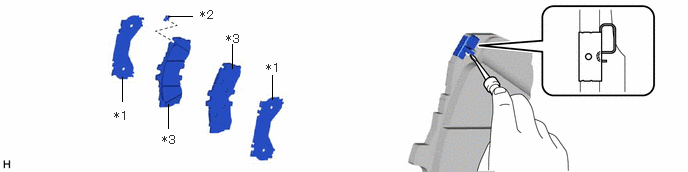

   *1	Front No. 1 Disc Brake Anti-squeal Shim	*2	Front Disc Brake Pad Wear Indicator Plate
   *3	Front Disc Brake Pad	-	-
