Removal [09/2023 - 12/2023]: Procedure

PRECAUTION

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

DISABLE BRAKE CONTROL

GTY1124223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Perform the following procedure to prohibit brake control.
1. To put the skid control ECU into sleep mode, turn the ignition switch off and wait for 4 minutes.
  NOTE:
  After turning the ignition switch off, opening/closing doors or operating the brake pedal will activate the brake control system, so do not open/close any doors or operate the brake pedal.
2. Disconnect the cable from the negative (-) auxiliary battery terminal.
  Refer to REMOVAL [09/2023 - ]
3. To put the skid control ECU into sleep mode completely, depress the brake pedal 40 times or more.
4. Check that the brake pedal does not stroke.

REMOVE FRONT WHEEL
Refer to REMOVAL [09/2023 - ]
DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.

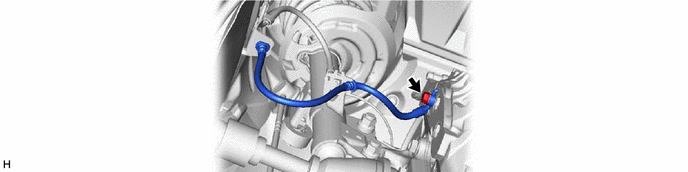

DISCONNECT FRONT FLEXIBLE HOSE

GTY1234366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

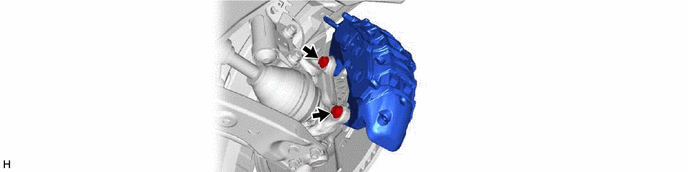

REMOVE DISC BRAKE CYLINDER ASSEMBLY

GTY1234368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

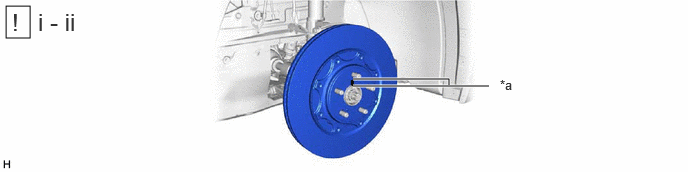

REMOVE FRONT DISC

GTY1229681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Matchmark

-

-

Put matchmarks on the front disc and the front axle hub sub-assembly.
Remove the front disc.

REMOVE FRONT DISC BRAKE PAD
Refer to PROCEDURE - Step 5
REMOVE FRONT ANTI SQUEAL SHIM KIT
Refer to PROCEDURE - Step 6
