Installation [09/2023 - ]: Procedure
- INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT
*1 Front No. 1 Disc Brake Anti-squeal Shim *2 Front Disc Brake Pad Wear Indicator Plate *3 Front Disc Brake Pad - - Brake Shim Grease (Part No. 08887-80409) - - - Apply brake shim grease (Part No. 08887-80409) to the front disc brake pads and front No. 1 disc brake anti-squeal shims at the positions shown in the illustration.NOTE:
Keep the lining surface of the front disc brake pad free from grease.
- Install the front No. 1 disc brake anti-squeal shim to each front disc brake pad.NOTE:
When replacing the front disc brake pads with new ones, make sure to replace the front disc brake anti-squeal shim kit at the same time.
- Install a new front disc brake pad wear indicator plate to front disc brake pad inner side.
- Apply brake shim grease (Part No. 08887-80409) to the front disc brake pads and front No. 1 disc brake anti-squeal shims at the positions shown in the illustration.
- INSTALL FRONT DISC BRAKE PAD

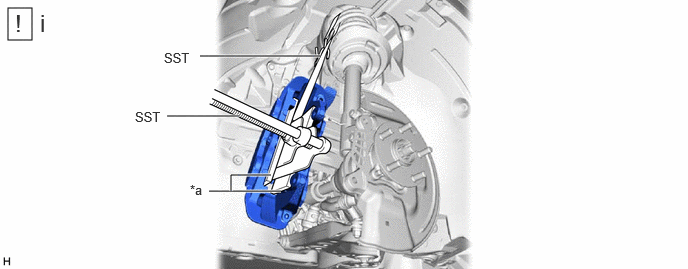

*a Wooden Block - - - Using SST and a wooden block, push back the front disc brake pistons.
- SST: 09719-77020
WARNING:Be careful not to get pinched by the disc brake cylinder assembly or other parts when installing the front disc brake pads.
NOTE:- Make sure that the brake fluid does not overflow from the reservoir.
- Do not forcibly push in the front disc brake pistons.
- Using SST and a wooden block, push back the front disc brake pistons.
- Install the 2 front disc brake pads to the disc brake cylinder assembly.NOTE:
When replacing the front disc brake pads with new ones, make sure to replace the front disc brake pad wear indicator plate at the same time.
- Install the 2 front disc brake pads to the disc brake cylinder assembly.

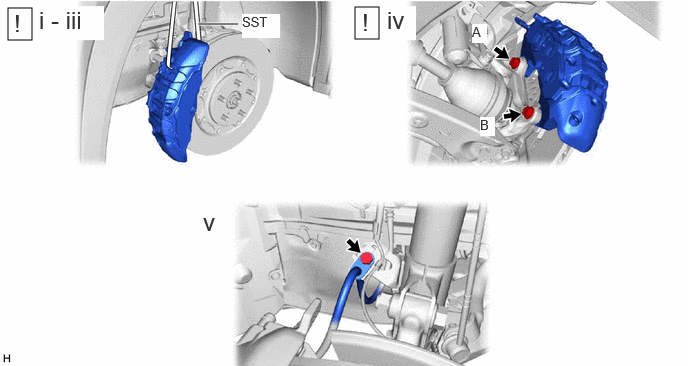

- INSTALL DISC BRAKE CYLINDER ASSEMBLY
- Install the front disc.
Refer to PROCEDURE - Step 3 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 3 [12/2023 - ]
- Temporarily install the disc brake cylinder assembly with the bolt on the lower side of the disc brake cylinder assembly.NOTE:
Do not apply excessive force to the flexible hose.
- Remove SST.
- Install the disc brake cylinder assembly with the bolt (A) and bolt (B).
Torque: 255 N.m (2600 kgf/cm, 188 ft.lbf)
- Install the flexible hose to the front flexible hose bracket with the bolt.
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
- Install the front disc.
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 6 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ] - INSPECT BRAKE FLUID LEVEL IN RESERVOIR
Refer to ON-VEHICLE INSPECTION [09/2023 - ]
- INSTALL FRONT WHEEL
Refer to INSTALLATION [09/2023 - ]
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [09/2023 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ]
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system are used.
