Removal [09/2023 - ]: Procedure

REMOVE FRONT WHEEL
Refer to REMOVAL [09/2023 - ]

DRAIN BRAKE FLUID

NOTE:

If brake fluid leaks onto any painted surface, immediately wash it off.

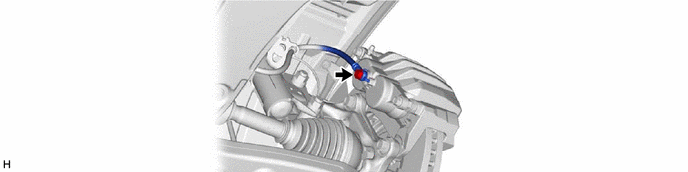

DISCONNECT FRONT FLEXIBLE HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

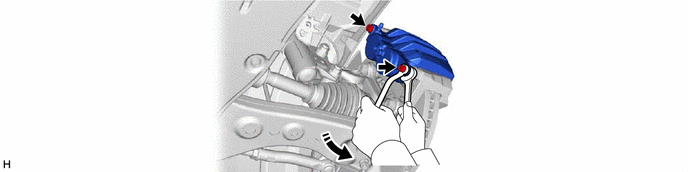

SEPARETE DISC BRAKE CYLINDER ASSEMBLY

NOTE:

Remove the disc brake cylinder assembly while holding both of the brake pads because the anti-squeal springs may fall off the brake pads.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

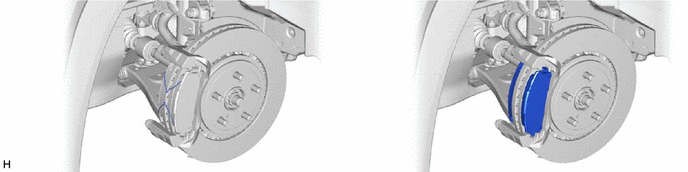

REMOVE FRONT DISC BRAKE PAD KIT

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT ANTI SQUEAL SHIM KIT
Refer to PROCEDURE - Step 4

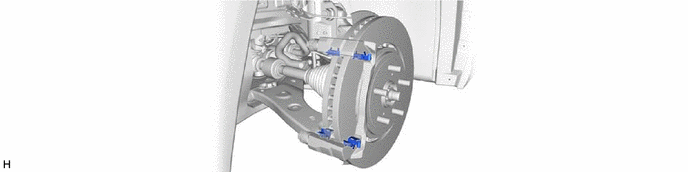

REMOVE FRONT DISC BRAKE FITTING KIT

NOTE:

Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that it can be reinstalled to its original position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

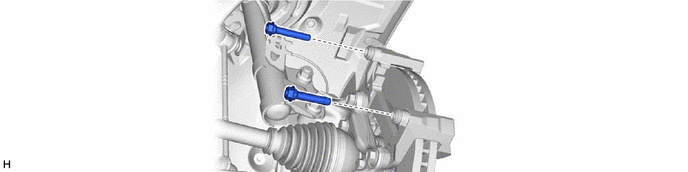

REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT DISC BRAKE CYLINDER SLIDE BUSHING

Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bushing from the front disc brake cylinder slide pin (lower side).
NOTE:
Do not damage the front disc brake cylinder slide pin (lower side).

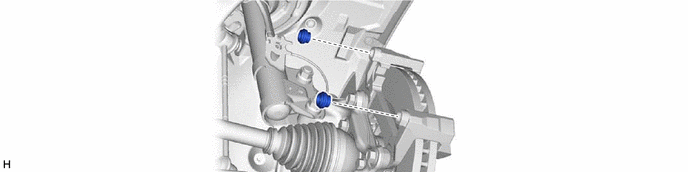

REMOVE FRONT DISC BRAKE BUSHING DUST BOOT

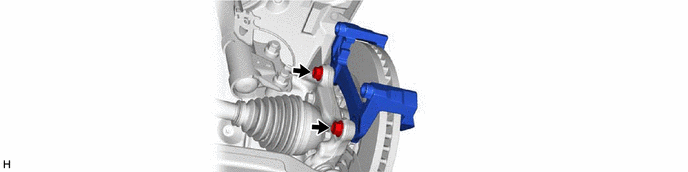

REMOVE FRONT DISC BRAKE CYLINDER MOUNTING

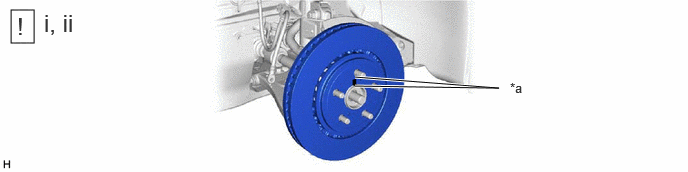

REMOVE FRONT DISC

Matchmark

Put matchmarks on the front disc and the front axle hub sub-assembly.
Remove the front disc.
