Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

WARNING: Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads. After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it. The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

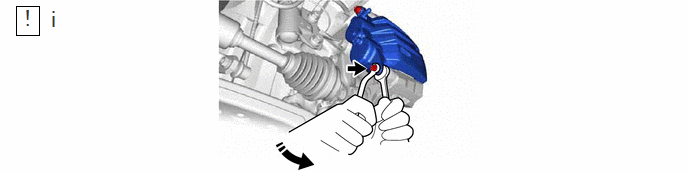

   1. Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.
      NOTE:

      • Do not kink or damage the brake line.
      • Remove the disc brake cylinder assembly while holding both of the brake pads because the anti-squeal springs may fall off the brake pads.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

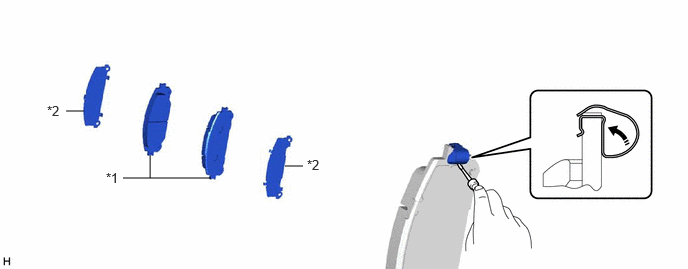

   *1

   Front Disc Brake Pad

   *2

   Front No. 1 Disc Brake Anti-squeal Shim
