Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 5 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 5 [12/2023 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    Refer to PROCEDURE - Step 6 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]
  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    Refer to PROCEDURE - Step 7 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 7 [12/2023 - ]
  4. REMOVE FRONT DOOR COURTESY LIGHT ASSEMBLY
    Refer to REMOVAL [09/2023 - ]
  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 9 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 9 [12/2023 - ]
  6. REMOVE OUTER MIRROR INSTALL HOLE COVER

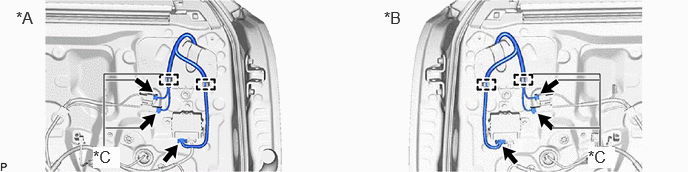

    1. GTY1240217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      *C w/ Panoramic View Monitor System - -

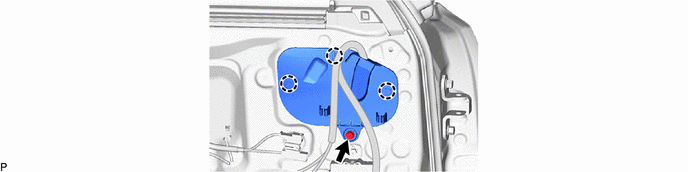

    2. GTY1234922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

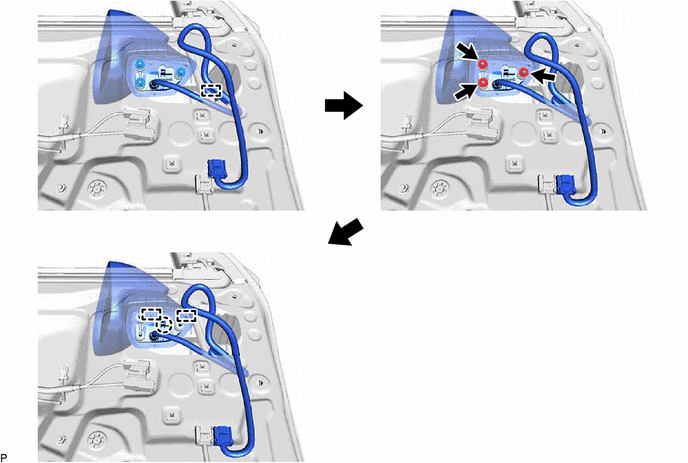

    1. GTY1240561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
