Disassembly [09/2023 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE CENTER STOP LIGHT CORD ASSEMBLY

    Refer to PROCEDURE - Step 3

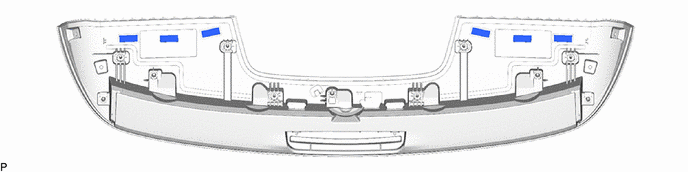

  3. REMOVE NO. 1 REAR SPOILER PROTECTOR
    1. GTY1234555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

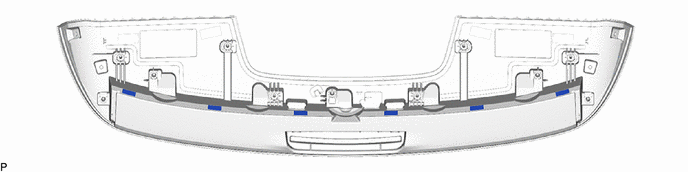

  4. REMOVE NO. 2 REAR SPOILER PROTECTOR
    1. GTY1234551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

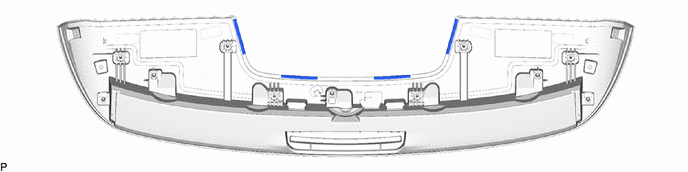

  5. REMOVE PROTECTOR
    1. GTY1240484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
