Removal [09/2023 - ]: Procedure

  1. REMOVE REAR SPOILER ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

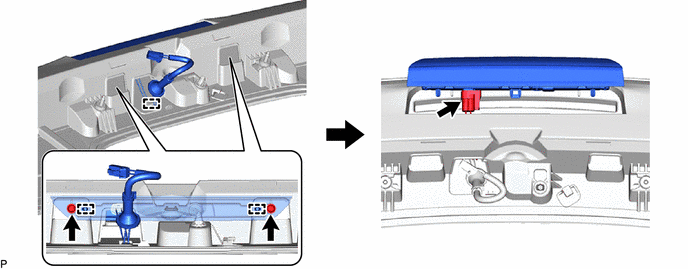

  2. REMOVE CENTER STOP LIGHT ASSEMBLY
    1. GTY1228301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

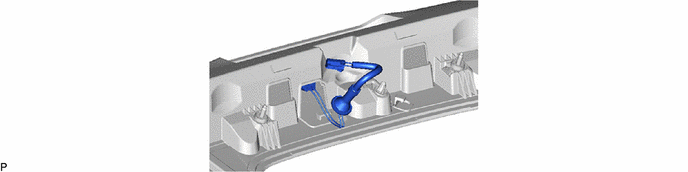

  3. REMOVE CENTER STOP LIGHT CORD ASSEMBLY
    GTY1228302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
