Removal [09/2023 - ]: Procedure

  1. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to DISASSEMBLY [09/2023 - 12/2023] , or refer to DISASSEMBLY [12/2023 - ]

  2. REMOVE REAR DOOR WEATHERSTRIP
    Refer to PROCEDURE - Step 17 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 17 [12/2023 - ]
  3. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

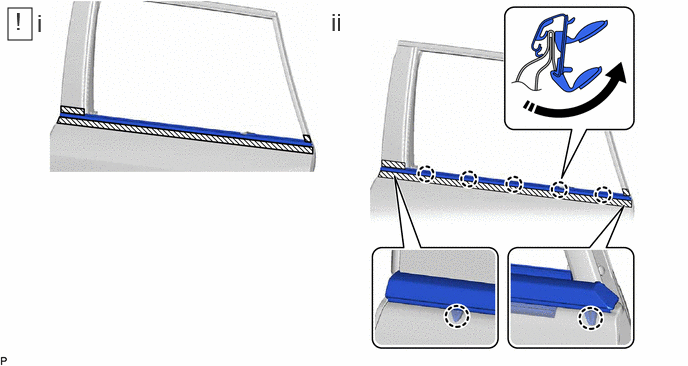

    1. GTY1202470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the rear door belt moulding assembly as shown in the illustration.
      2. Disengage the 7 claws and remove the rear door belt moulding assembly as shown in the illustration.
