Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

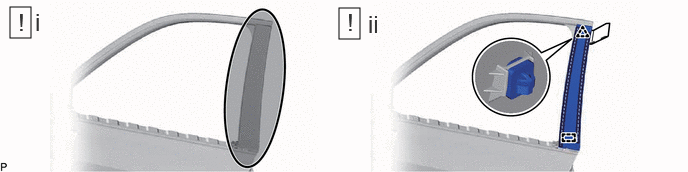

   Heating Area

   -

   -

   1. Using a heat light, heat the front door panel and front door window frame rear moulding surface.
      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Front Door Window Frame Rear Moulding and Front Door Panel	40 to 60 °C (104 to 140 °F)	-	-

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the front door panel and front door window frame rear moulding excessively.

   2. Using a moulding remover, disengage the clip, guide and separate the double-sided tape to remove the front door window frame rear moulding.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tape

   -

   -

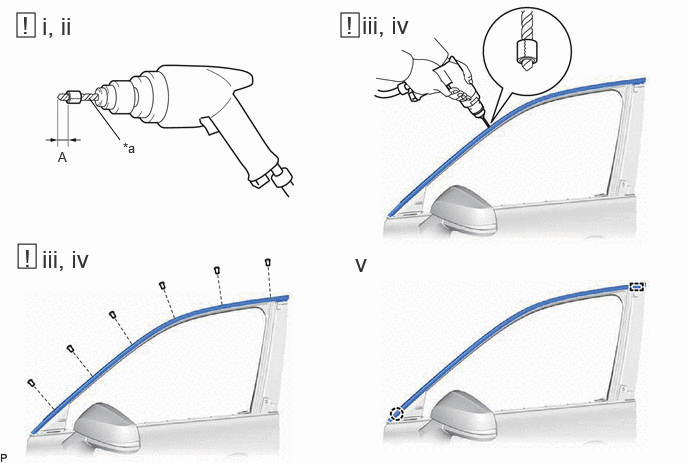

   1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
   2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

      Standard Measurement

      Area	Measurement	Area	Measurement
      A	5.0 mm (0.197 in.)	-	-

      NOTE:

      Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

   3. Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 6 rivets.
      WARNING:

      Be careful of the drilled rivets, as they may be hot.

      NOTE:

      • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
      • Prying the rivets with the drill may damage the rivet installation holes or drill bit.
   4. Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
   5. Disengage the claw and guide and remove the front door window frame upper moulding.
