Removal [12/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. REMOVE DECK BOARD ASSEMBLY (except Gasoline Model)

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE HOLE COVER (except Gasoline Model)

    For T24A-FTS 1Motor-HEV Model:

    Refer to PROCEDURE - Step 3

    For 2GR-FXS:

    Refer to PROCEDURE - Step 3

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    For T24A-FTS Gasoline Model:

    Refer to PROCEDURE - Step 3

    For T24A-FTS 1Motor-HEV Model:

    Refer to PROCEDURE - Step 4

    For 2GR-FXS:

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 5

  6. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    Refer to PROCEDURE - Step 6
  7. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    Refer to PROCEDURE - Step 7
  8. REMOVE FRONT DOOR COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 9
  10. REMOVE FRONT DOOR LOCK CONTROL BELLCRANK SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  11. REMOVE FRONT DOOR WEATHERSTRIP CLIP
    Refer to PROCEDURE - Step 24
  12. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 25

  13. REMOVE FRONT DOOR LOCK OPEN ROD
    1. GTY1230797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Disengage the snap as shown in the illustration to disconnect the front door lock open rod.
      2. Remove the front door lock open rod in the direction indicated by the arrow (3) shown in the illustration.
  14. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
    Refer to PROCEDURE - Step 36
  15. REMOVE HOLE PLUG (for Driver Side)

    Refer to PROCEDURE - Step 37

  16. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
    Refer to PROCEDURE - Step 38
  17. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY WITH CABLE

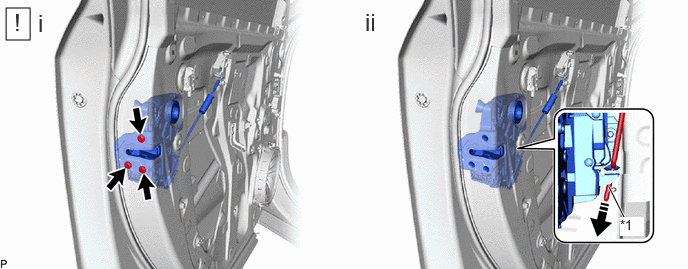

    1. GTY1233581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod - -
      Remove in this Direction - -
      1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      2. Slide the front door lock with motor assembly with cable downward to disconnect the front door lock open rod and remove the front door lock with motor assembly with cable.
  18. REMOVE DOOR LOCK WIRING HARNESS SEAL

    HINT:

    When reusing the front door lock with motor assembly.

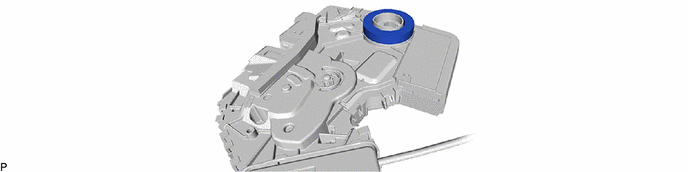

    1. GTY1234966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

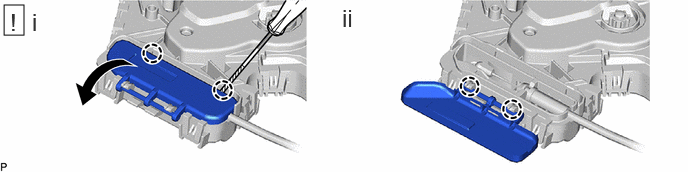

    1. GTY1241313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      2. Disengage the 2 claws to remove the front door lock cover sub-assembly.
  20. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

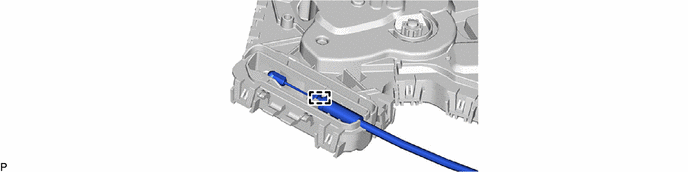

    1. GTY1234962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
