Removal [09/2023 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL (for Side)

    Refer to PROCEDURE - Step 22

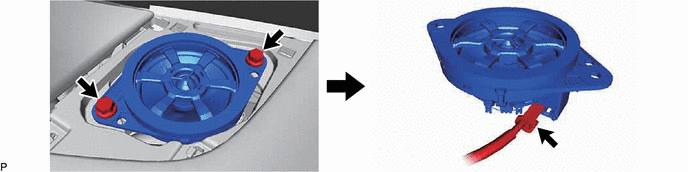

  2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Side)
    1. GTY1230642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)
    Refer to PROCEDURE - Step 27

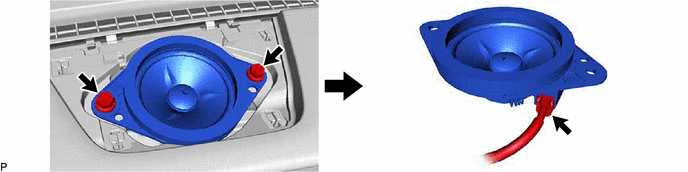

  4. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY (for Center)
    1. GTY1232901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
