Removal [09/2023 - ]: Procedure
- REMOVE FRONT DOOR ARMREST COVER
Refer to PROCEDURE - Step 5 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 5 [12/2023 - ]
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 6 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ] - REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 7 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 7 [12/2023 - ] - REMOVE FRONT DOOR COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

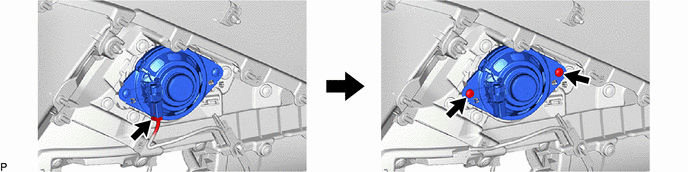

Refer to PROCEDURE - Step 9 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 9 [12/2023 - ] - REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for 21 Speakers)

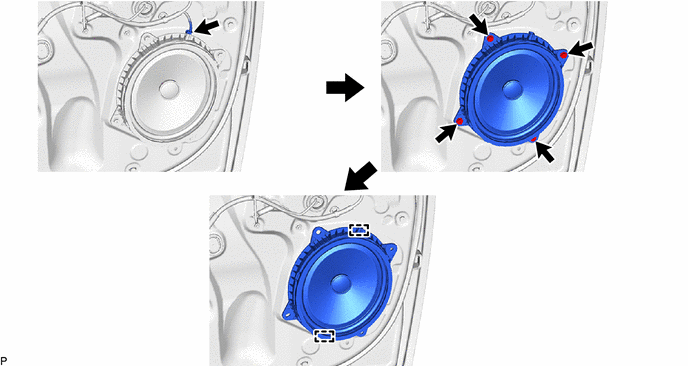

- REMOVE FRONT NO. 4 SPEAKER ASSEMBLY
