Installation [10/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.
   2. Fully tighten the bolt (A) and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

      Torque: 42 N*m (428 kgf*cm, 372 in.*lbf)

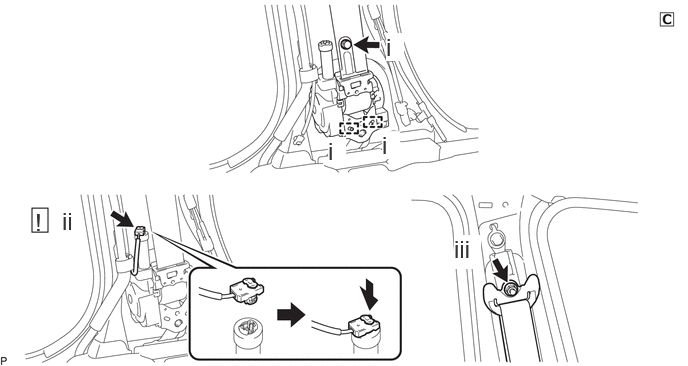

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the 2 guides and install the front seat outer belt assembly with the bolt.

      Torque: 12.5 N*m (127 kgf*cm, 111 in.*lbf)

   2. Connect the pretensioner connector and lock the locking button as shown in the illustration.
      NOTE:

      Securely lock the locking button.

   3. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

      Torque: 42 N*m (428 kgf*cm, 372 in.*lbf)

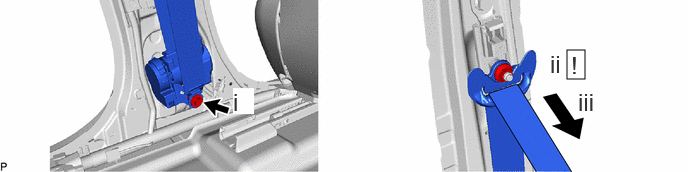

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Install the front seat outer belt assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 372 in.*lbf)

   2. Connect the shoulder anchor of the front seat outer belt assembly with the nut.
   3. Check that the ELR locks.
      NOTE:

      This check should be performed with the front seat outer belt assembly installed to the vehicle.

      1. With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

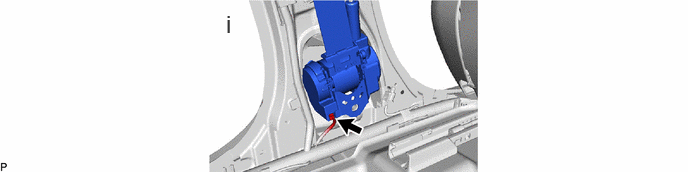

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the connector.

Torque: 42 N*m (428 kgf*cm, 372 in.*lbf)

1. for T24A-FTS (for Gasoline Model):

   Refer to PROCEDURE - Step 5

2. for T24A-FTS (for 1Motor-HEV Model):

   Refer to PROCEDURE - Step 5

3. for A25A-FXS:

   Refer to PROCEDURE - Step 5 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 5 [08/2023 - ]

Refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2022 - 08/2023] , or refer to AUTOMATIC LEARNING CHART [08/2023 - ]

Refer to OPERATION CHECK [10/2022 - ]

Refer to OPERATION CHECK [10/2022 - ]
