Installation [08/2023 - ]: Procedure
- INSTALL HEATER WATER VALVE ASSEMBLY
Torque: 2.6 N.m (27 kgf/cm, 23 in.lbf)
- INSTALL HEATER WIRING
- INSTALL HEATER ACCESSORY ASSEMBLY
-
- Engage the guide.
- Install the heater accessory assembly with the nut and bolt in the order shown in the illustration.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- Connect the connector.
-
- CONNECT OUTLET HEATER WATER HOSE
- CONNECT INLET HEATER WATER HOSE A

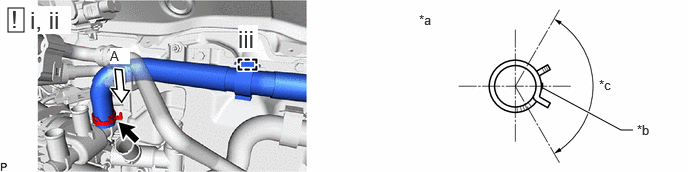

*a View A *b Marking (Blue) *c Hose Clip Installation Range (120°) - - - Connect the inlet heater water hose A with the marking within the area shown in the illustration.NOTE:
Do not apply excessive force to the inlet heater water hose A.
- Engage the clip within the area shown in the illustration.
- Engage the clamp.
- Connect the inlet heater water hose A with the marking within the area shown in the illustration.
- CONNECT HEATER WATER HOSE L
- INSTALL AIR CONDITIONING HOSE AND ACCESSORY
- Remove the vinyl tape, and sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the air conditioning hose and accessory.
Compressor Oil
ND-OIL 11 or equivalent
- Install the 2 O-rings to the air conditioning hose and accessory.NOTE:
Keep the O-rings and O-ring fitting surfaces free from foreign matter.
- Install the air conditioning hose and accessory with the bolt and nut.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- Remove the vinyl tape, and sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the air conditioning hose and accessory.
- CONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE
See step 5 - CONNECT HEATER WATER HOSE
- INSTALL HEATER WATER HOSE
*a View A *b View B *c Marking (Blue) *d Marking (Pink) *e Hose Clip Installation Range (120°) - - - Install the heater water hose with the marking within the area shown in the illustration.NOTE:
Do not apply excessive force to the heater water hose.
- Engage the 2 clips within the area shown in the illustration.
- Install the heater water hose with the marking within the area shown in the illustration.
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 47 - INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
- INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to INSTALLATION [10/2022 - ]
- ADD ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 5
- INSPECT FOR COOLANT LEAK (for Engine)
Refer to PROCEDURE - Step 1
- CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT
Refer to PROCEDURE - Step 3
- WARM UP COMPRESSOR
Refer to PROCEDURE - Step 4
- INSPECT FOR REFRIGERANT LEAK
Refer to PROCEDURE - Step 6
