Installation [08/2023 - ]: Procedure

INSTALL HEATER WATER HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

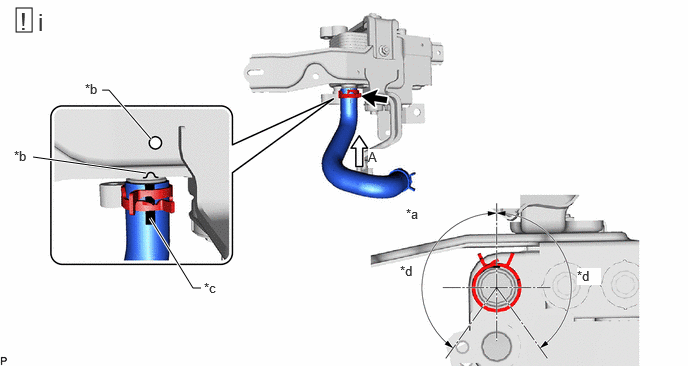

*a	View A	*b	Alignment Mark
*c	Marking (White)	*d	Clip Installation Angle (145°)

Align the marking with the alignment mark, install the heater water hose and engage the clip within the area shown in the illustration.
NOTE:
Do not apply excessive force to the heater water hose.

INSTALL PIPING CLAMP
INSTALL HEATER AND ACCESSORY SUB-ASSEMBLY
1. Fig 1: Heater And Accessory Sub-Assembly Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Install the heater and accessory sub-assembly with the 2 nuts and bolt in the order shown in the illustration.
    Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
INSTALL DISCHARGE TUBE SUB-ASSEMBLY

See step 2
INSTALL DISCHARGE TUBE SUB-ASSEMBLY

Refer to PROCEDURE - Step 2
CONNECT DISCHARGE HOSE SUB-ASSEMBLY

Refer to PROCEDURE - Step 3
INSTALL HEATER PUMP ASSEMBLY
Refer to INSTALLATION [08/2023 - ]
INSTALL NO. 2 HEATER AND ACCESSORY SUB-ASSEMBLY
Refer to INSTALLATION [08/2023 - ]
