Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

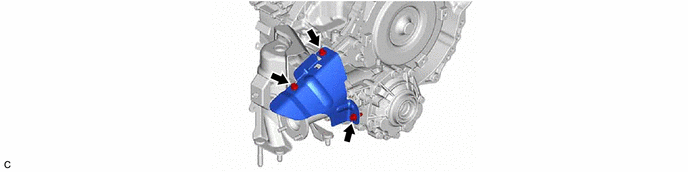

  2. REMOVE PROPELLER SHAFT HEAT INSULATOR
    1. GTY1128042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

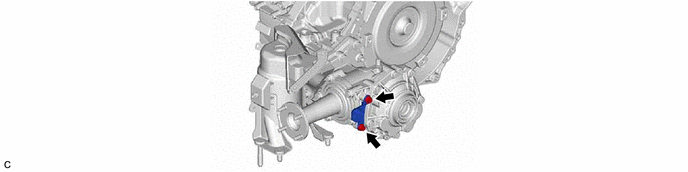

  3. REMOVE PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY NO. 1
    1. GTY1128041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 2

  5. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

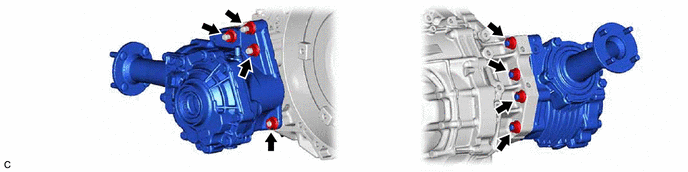

  6. REMOVE TRANSFER ASSEMBLY
    1. GTY1129519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
