Removal [10/2022 - ]: Procedure

REMOVE FRONT FRAME ASSEMBLY
Refer to REMOVAL [10/2022 - ]

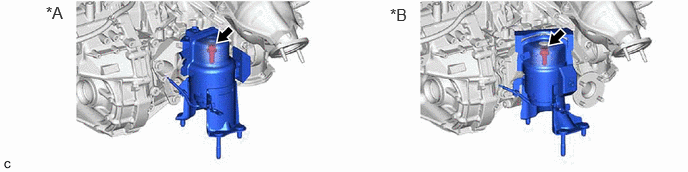

REMOVE REAR ENGINE MOUNTING INSULATOR

GTY1131912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for 2WD

*B

for AWD

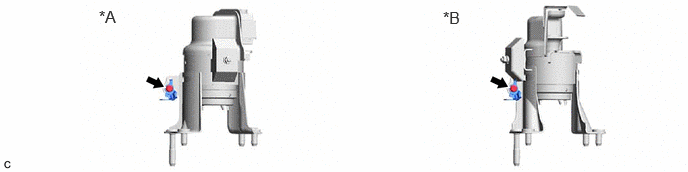

REMOVE WIRE HARNESS CLAMP BRACKET

GTY1132504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for 2WD

*B

for AWD

DISCONNECT VACUUM HOSE

GTY1133305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for 2WD

*B

for AWD
