Removal [10/2022 - 08/2023]: Procedure
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- REMOVE BATTERY SERVICE COVER PLATE
Refer to PROCEDURE - Step 2
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 - REMOVE EARTH BOLT CAP
See step 2

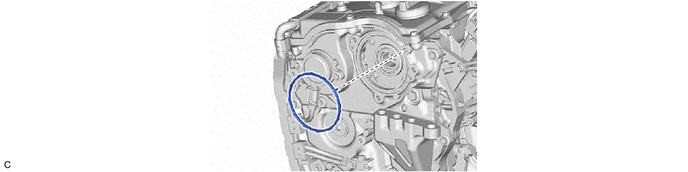

- DISCONNECT NO. 2 EARTH WIRE
See step 3
- REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY NOTE:
If the cam timing control motor with EDU assembly has been struck or dropped, replace it.
- REMOVE CAM TIMING CONTROL MOTOR O-RING
