Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ NUMBER OF STARTER OPERATIONS

    Refer to REGISTRATION [10/2022 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE ECU INTEGRATION BOX LH

    Refer to REMOVAL [10/2022 - 08/2023] , or refer to REMOVAL [08/2023 - ]

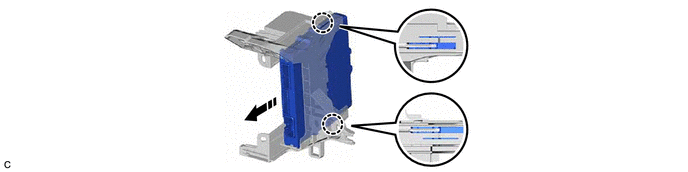

  4. REMOVE ENGINE STOP AND START ECU
    1. GTY1078570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
