Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
REMOVE FRONT BUMPER ASSEMBLY
- for Sport Package:
  Refer to REMOVAL [10/2022 - ]
- except Sport Package:
  Refer to REMOVAL [10/2022 - ]

REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

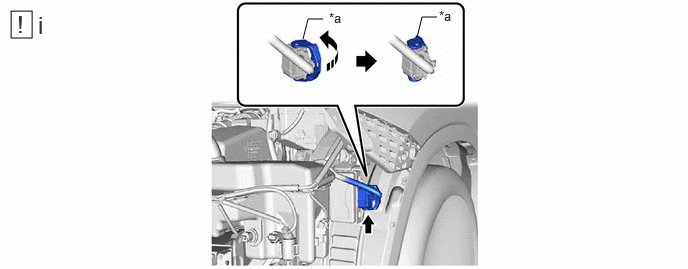

Lock Lever

While pushing the lock of the lock lever, move the lock lever as shown in the illustration, and them disconnect the eco run vehicle converter assembly connector.

REMOVE NO. 1 CONVERTER CONTROL BRACKET
