Installation [10/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

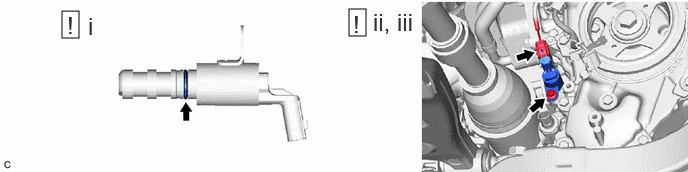

   1. Apply a small amount of engine oil to the O-ring of the oil pressure control valve assembly.
   2. Using an 8 mm socket wrench, install the oil pressure control valve assembly to the timing chain cover assembly with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      NOTE:

      • When reusing the oil pressure control valve assembly, inspect the O-ring.
      • Make sure that the O-ring is not cracked or does not move out of place during installation.
   3. Connect the oil pressure control valve assembly connector.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to PROCEDURE - Step 6

for 1Motor-HEV Model:

Refer to PROCEDURE - Step 77

for Gasoline Model:

Refer to PROCEDURE - Step 83
