Removal [10/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 9

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 10

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11

  6. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 4

  7. REMOVE V-RIBBED BELT

    Refer to REMOVAL [10/2022 - ]

  8. DISCONNECT NO. 2 INTERCOOLER COOLING WATER HOSE
    1. GTY1133206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

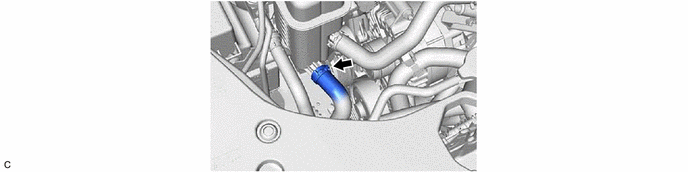

  9. DISCONNECT NO. 3 INTERCOOLER COOLING WATER HOSE
    1. GTY1133207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

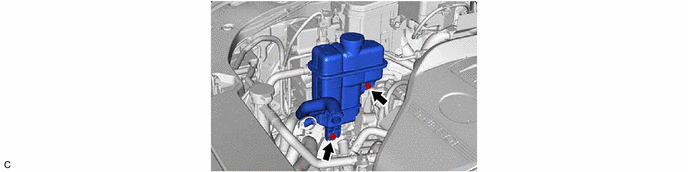

  10. REMOVE INTERCOOLER RESERVE TANK ASSEMBLY
    1. GTY1133208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT ENGINE WIRE
    1. GTY1129773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE GENERATOR ASSEMBLY
    1. GTY1133380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts and bolt.
      2. Using an E8 "TORX" socket wrench, remove the stud bolt and generator assembly.
