Installation [10/2022 - ]: Procedure

  1. TEMPORARILY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
    1. GTY1124866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Center Support Bearing Damper *2 Center No. 2 Support Bearing Washer
      *a Matchmark *b Alignment Mark
      1. When reusing a propeller with center bearing shaft assembly and rear differential carrier assembly:

        1. Align the matchmarks on the rear differential carrier assembly and propeller with center bearing shaft assembly.

        2. Temporarily install the 4 nuts and 4 washers.

        NOTE:

        Do not apply grease to the 4 bolts, 4 nuts or 4 washers.

      2. When using a new propeller with center bearing shaft assembly or rear differential carrier assembly:

        1. Align the alignment marks on the rear differential carrier assembly and propeller with center bearing shaft assembly.

        2. Temporarily install the 4 nuts and 4 washers.

        NOTE:

        Do not apply grease to the 4 bolts, 4 nuts or 4 washers.

      3. Align the matchmarks on the transfer assembly and propeller with center bearing shaft assembly.
      4. Temporarily install the 4 nuts and 4 washers.
        NOTE:

        Do not apply grease to the 4 bolts, 4 nuts or 4 washers.

      5. Temporarily install the propeller with center bearing shaft assembly with the bolt, center support bearing damper and 2 center No. 2 support bearing washers (for front side).
        NOTE:
        • Reuse the center No. 2 support bearing washers.
        • Do not apply grease to the bolt, center support bearing damper and 2 center No. 2 support bearing washers.
      6. Temporarily install the propeller with center bearing shaft assembly with the bolt, center support bearing damper and 2 center No. 2 support bearing washers (for rear side).
        NOTE:
        • Reuse the center No. 2 support bearing washers.
        • Do not apply grease to the bolt, center support bearing damper and 2 center No. 2 support bearing washers.
      7. Fully tighten the propeller with center bearing shaft assembly and the rear differential carrier assembly with the 4 nuts.

        Torque: 73.5 N.m (749 kgf/cm, 54 ft.lbf)

      8. Fully tighten the propeller with center bearing shaft assembly and the transfer assembly with the 4 nuts.

        Torque: 73.5 N.m (749 kgf/cm, 54 ft.lbf)

  2. FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
    1. GTY1124862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90° - -
      1. With the vehicle unloaded, adjust the front and rear distance (A) between the edge surface of the center No. 2 support bearing assembly and the edge surface of the cushion respectively as shown in the illustration, and then tighten the bolts.

        Distance (A)

        11.3 to 13.3 mm (0.445 to 0.524 in.)

      2. Fully tighten the bolt and center support bearing damper (for front side).

        Torque: 36.8 N.m (375 kgf/cm, 27 ft.lbf)

      3. Fully tighten the bolt and center support bearing damper (for rear side).

        Torque: 36.8 N.m (375 kgf/cm, 27 ft.lbf)

      4. Check that the center line of the bracket is at a right angle to the shaft axial direction.
  3. INSPECT AND ADJUST JOINT ANGLE
    NOTE:

    Measure the joint angle when the vehicle is raised using a four-post lift or when using a pit.

    HINT: If any vibration or noise occurs, perform the joint angle check as follows and replace the center No. 2 support bearing washers with ones of the correct thickness.
    1. GTY1063575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Stabilize the propeller shaft and differential.

        1. Turn the propeller shaft several times by hand to stabilize the center support bearings.

        2. Using a jack, raise and lower the differential to stabilize the differential mounting cushion.

    2. GTY1059565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 1 Joint Angle (A - B) *b No. 2 Joint Angle (B - C)
      *c No. 3 Joint Angle (C - D) *d 90°
      *e Straightedge *f Straightedge Contact Position
      1. Check the No. 1, No. 2 and No. 3 joint angles.
      2. Using SST, measure the transfer assembly installation angle (A) and propeller shaft assembly installation angle (B), (C) and (D).
        • SST: 09370-50010

        Joint Angle

        Measurement Position Joint Angle
        No. 1 Joint Angle (A - B) -2°18' + 1°30'/- 1°
        No. 2 Joint Angle (B - C) 0°42' +/- 1°
        No. 3 Joint Angle (C - D) -0°06' +/- 1°
    3. GTY1064482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Propeller Shaft Assembly Installation Angle (D) *b Rear Differential Carrier Assembly Installation Angle (E)
      No. 4 Joint Angle (D - E) - -
      1. Check the No. 4 joint angle.
      2. Using SST, measure the rear propeller shaft assembly installation angle (D) and rear differential carrier assembly installation angle (E).
        • SST: 09370-50010

        Joint Angle

        Measurement Position Joint Angle
        No. 4 Joint Angle (D - E) 2°06' +/- 0.30°

        If the measured angle is not within the specified range, adjust it with center No. 2 support bearing washers.

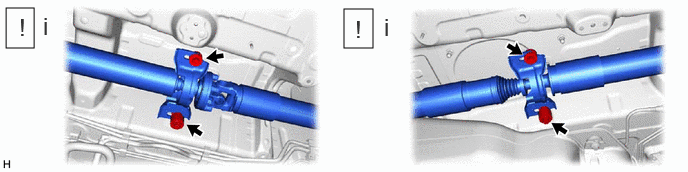

    4. GTY1126787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Select center No. 2 support bearing washers for adjustment.

        Center No. 2 Support Bearing Washer Thickness

        Part No. Thickness mm (in.)
        90201-10123 2.0 mm (0.079 in.)
        90201-10081 4.5 mm (0.177 in.)
        90201-10083 6.5 mm (0.256 in.)
        90201-10084 9.0 mm (0.354 in.)
        NOTE:
        • Make sure to use center No. 2 support bearing washers of the same thickness on both the right and left sides.
        • Do not use more than 1 adjusting washer per bolt.
  4. INSTALL REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY
    1. GTY1128166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut

      Nut

      Torque: 4.9 N.m (50 kgf/cm, 43 in.lbf)

      Bolt A

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

      Bolt B

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  5. INSTALL ENGINE SERVICE COVER ASSEMBLY

    Torque: 4.9 N.m (50 kgf/cm, 43 in.lbf)

  6. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]

  7. INSTALL NO. 1 FLOOR UNDER COVER
  8. INSTALL FRONT FLOOR COVER RH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  9. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 15

  10. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 6

  11. INSPECT FOR EXHAUST GAS LEAK

    Refer to INITIALIZATION [10/2022 - ]
