Removal [10/2024 - ]: Procedure

  1. SECURE VEHICLE
    1. for UA81E / UA81F:

      Refer to PROCEDURE - Step 1

    2. for P810:

      Refer to PROCEDURE - Step 1

    3. for PC60:

      Refer to PROCEDURE - Step 1
  2. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

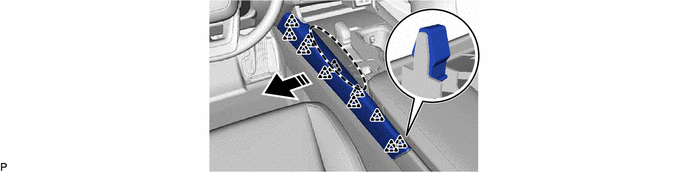

    1. GTY1122497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  3. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

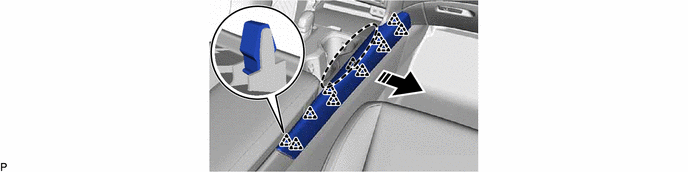

    1. GTY1123773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. for UA81E / UA81F:

      Refer to PROCEDURE - Step 1

    2. for P810:

      Refer to PROCEDURE - Step 1

    3. for PC60:

      Refer to PROCEDURE - Step 1

  5. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
    1. GTY1129050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. As shown in the illustration, open the rear console armrest assembly toward the front passenger seat.
      2. Check that the lock plate protrudes when the stopper is pushed.
      3. As shown in the illustration, push the front passenger seat side release lever while closing the rear console armrest assembly.
      4. Lift the rear console armrest assembly.

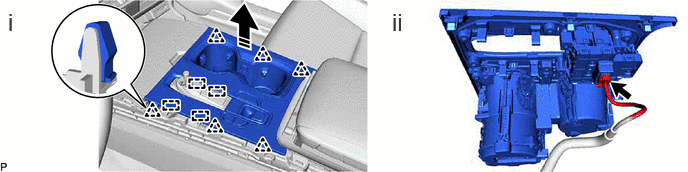

    2. GTY1126974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 6 clips and 4 guides to remove the upper rear console panel sub-assembly as shown in the illustration.
      2. Disconnect the connector.
    3. GTY1128048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Push in this Direction
      1. Insert the front and rear retainer into the groove of the rear console armrest assembly.
      2. While holding the position shown in the illustration, close until the lock plate strikes the retainer.
      3. Push the driver seat side release lever and push the rear console armrest assembly in the direction shown in the illustration.
      4. Check that the rear console armrest assembly can be opened and closed.
  6. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

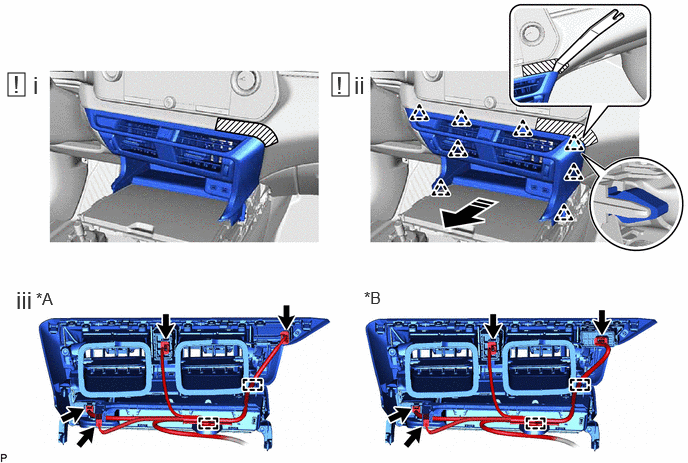

    1. GTY1254534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Panoramic View Monitor System *B w/ Panoramic View Monitor System
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 8 clips as shown in the illustration to remove the center instrument panel register assembly.
      3. Disengage the 2 clamps and 4 connectors.
  7. REMOVE FRONT UPPER CONSOLE PANEL SUB-ASSEMBLY

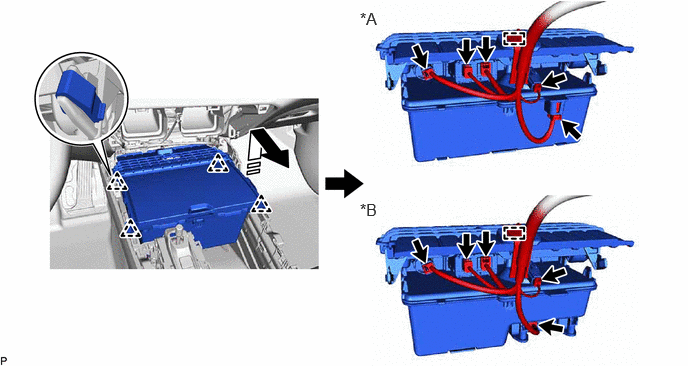

    1. GTY1124901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Wireless Charger *B w/ Wireless Charger
      Remove in this Direction - -
  8. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 17

  9. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 18

  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

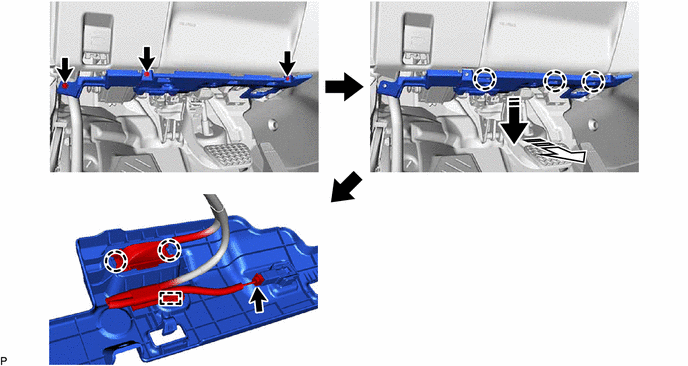

    1. GTY1126311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  11. REMOVE NO. 1 INNER INSTRUMENT PANEL BRACE COVER LH

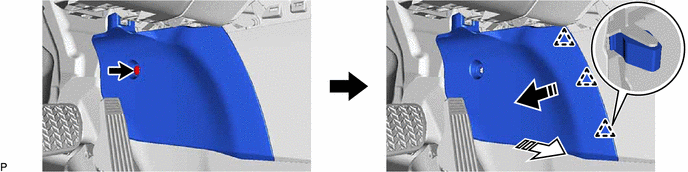

    1. GTY1126321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  12. REMOVE NO. 1 INNER INSTRUMENT PANEL BRACE COVER RH

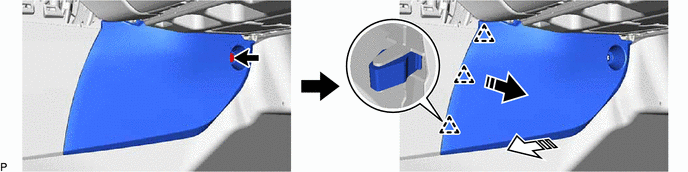

    1. GTY1127479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  13. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

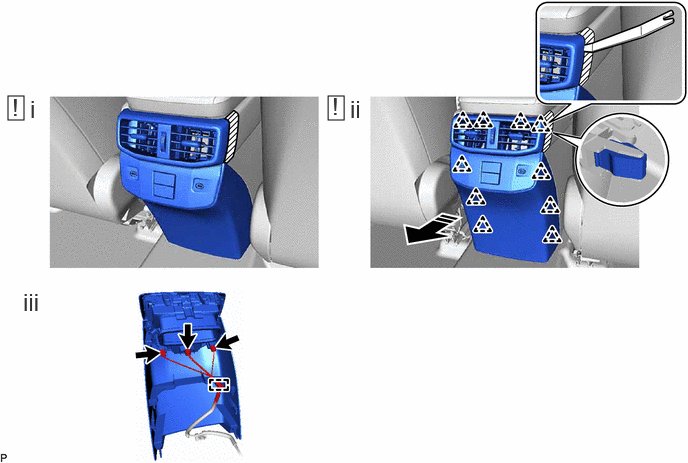

    1. GTY1122644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 10 clips as shown in the illustration to remove the console rear end panel sub-assembly.
      3. Disengage the clamp and disconnect the 3 connectors.
  14. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. for UA81E / UA81F:

      Refer to PROCEDURE - Step 6

    2. for P810:

      Refer to PROCEDURE - Step 6

    3. for PC60:

      Refer to PROCEDURE - Step 6
  15. REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY (w/ Digital Key System)
    Refer to PROCEDURE - Step 2
  16. REMOVE CONSOLE BOX CARPET
    1. GTY1127946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR CONSOLE BOX ASSEMBLY

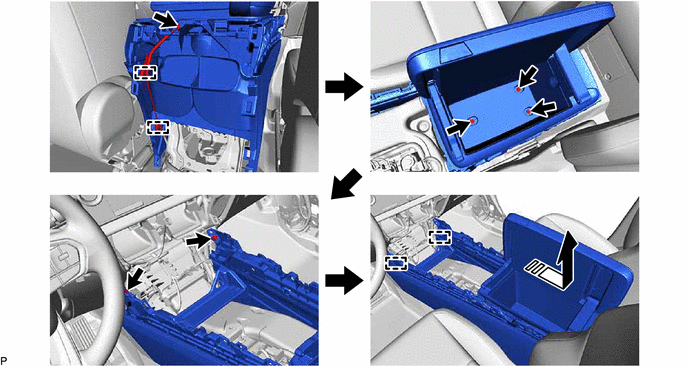

    1. GTY1122412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  18. REMOVE NO. 2 CONSOLE BOX SILENCER PAD

    HINT:

    Perform this procedure only when replacement of the No. 2 console box silencer pad is necessary.

    1. GTY1124368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  19. REMOVE NO. 1 CONSOLE BOX SILENCER PAD

    HINT:

    Perform this procedure only when replacement of the No. 1 console box silencer pad is necessary.

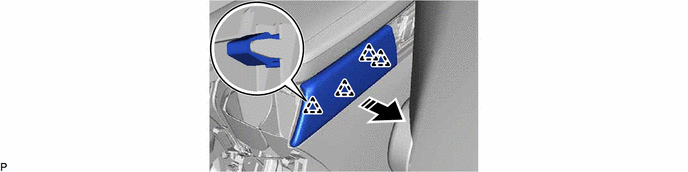

    1. GTY1129023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  20. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the console cup holder box sub-assembly is necessary.

    1. GTY1127952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
