Disassembly [10/2022 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

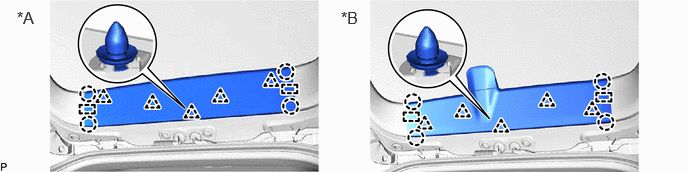

    1. GTY1125056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Digital Inner Mirror *B w/ Digital Inner Mirror
  2. REMOVE BACK DOOR SIDE GARNISH LH

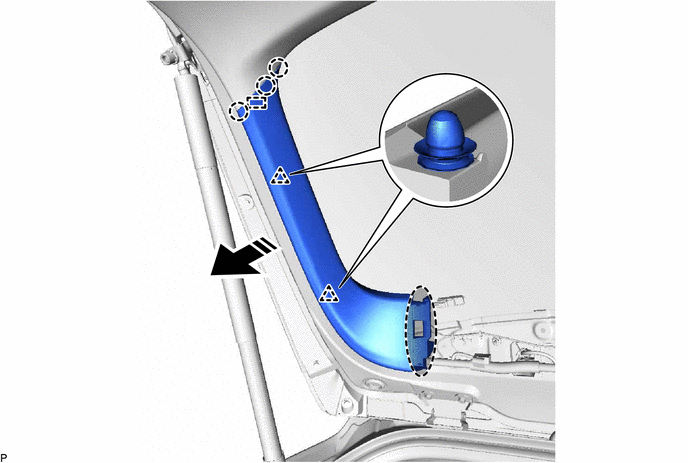

    1. GTY1123339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR LOCK COVER

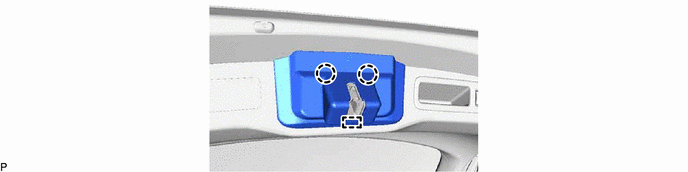

    1. GTY1128622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BACK DOOR INSIDE HANDLE

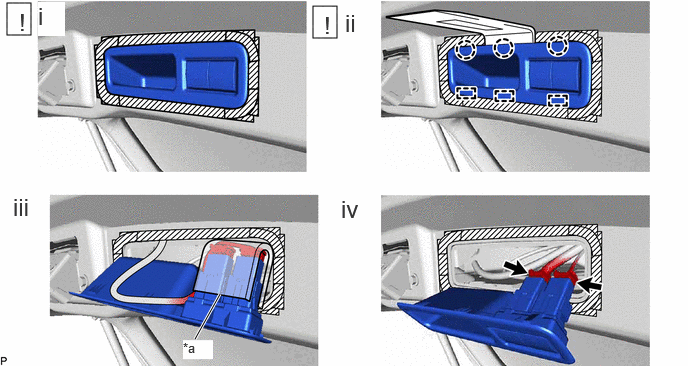

    1. GTY1127117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Switch Cover - -
      1. Apply protective tape to the back door trim board assembly as shown in the illustration.
      2. Using a moulding remover, disengage the 3 claws and 3 guides.
      3. Remove the switch cover.
      4. Disconnect the 2 connectors to remove the back door inside handle.
  6. REMOVE BACK DOOR SERVICE HOLE COVER
    1. GTY1123729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  8. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

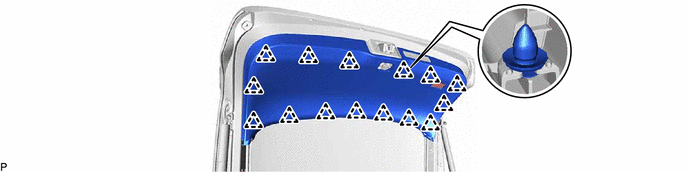

    1. GTY1123730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT POWER BACK DOOR UNIT ASSEMBLY LH

    See step  8

  10. DISCONNECT POWER BACK DOOR UNIT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  11. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  9

  12. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  13. REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  14. REMOVE MULTIPLEX NETWORK DOOR ECU

    Refer to PROCEDURE - Step 8

  15. REMOVE BACK DOOR WEIGHT

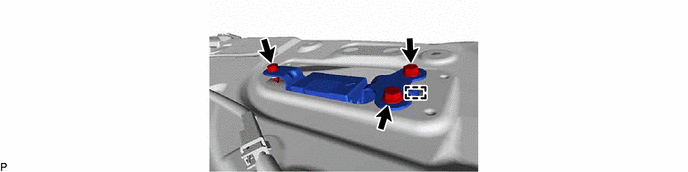

    1. GTY1123734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to PROCEDURE - Step 8

  17. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 2

  18. REMOVE REAR SPOILER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3
  19. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  20. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  21. REMOVE REAR WASHER NOZZLE
    Refer to PROCEDURE - Step 2
  22. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 2

  23. REMOVE REAR WIPER MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 3
  24. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 4

  25. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 12
  26. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

  27. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 3 [10/2024 - ]

  28. REMOVE BACK DOOR DUST PROOF SEAL

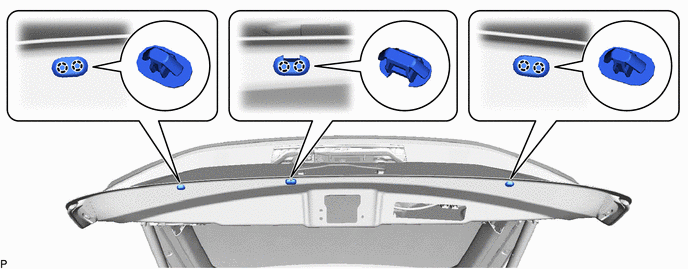

    1. GTY1127972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE POWER BACK DOOR UNIT ASSEMBLY LH
    Refer to PROCEDURE - Step 10
  30. REMOVE POWER BACK DOOR UNIT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  31. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH

    Refer to PROCEDURE - Step 11

  32. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH
    1. Use the same procedure as for the LH side.
  33. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET LH

    Refer to PROCEDURE - Step 12

  34. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET RH
    1. Use the same procedure as for the LH side.
  35. REMOVE BACK DOOR STAY STOPPER

    Refer to PROCEDURE - Step 13

  36. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [10/2022 - 08/2023] , or refer to REMOVAL [08/2023 - ]

  37. REMOVE NO. 5 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 10 [08/2023 - ]

  38. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 9
