Removal [10/2022 - ]: Procedure

  1. REMOVE FRONT ROOF HEADLINING TRIM
    Refer to PROCEDURE - Step 65 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 66 [08/2023 - ]

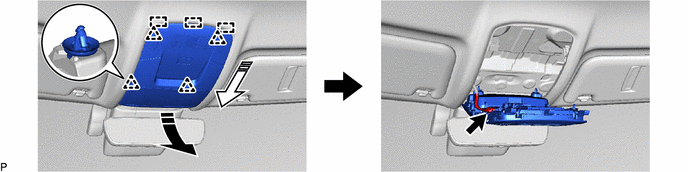

  2. REMOVE MAP LIGHT ASSEMBLY
    1. GTY1134912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
