Removal [09/2020 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2020 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 5

  4. REMOVE SPARE WHEEL COVER TRAY

    Refer to PROCEDURE - Step 6

  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 7

  6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 8

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 13

  9. SEPARATE LUGGAGE COMPARTMENT TRIM COVER LH (for LH Side)

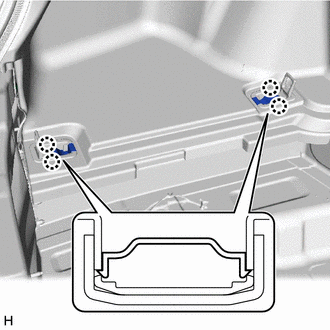

    1. Disengage the 4 claws and open the 2 covers.
      GTY519602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

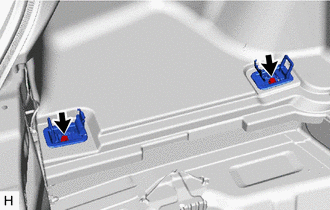

    2. Remove the 2 bolts and 2 rope hook assemblies.
      GTY507078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

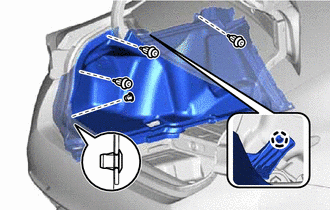

    3. Remove the 4 clips.
      GTY958794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the claw.
    5. Separate the luggage compartment trim cover LH from the vehicle body.
  10. SEPARATE LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

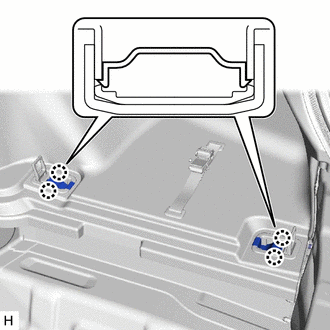

    1. Disengage the 4 claws and open the 2 covers.
      GTY507077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

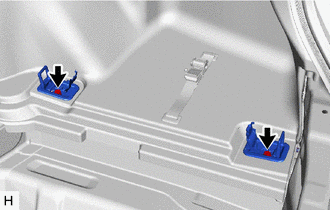

    2. Remove the 2 bolts and 2 rope hook assemblies.
      GTY507076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

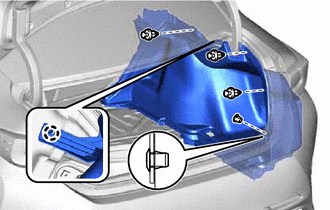

    3. Remove the 4 clips.
      GTY958066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the claw.
    5. Separate the luggage compartment trim cover RH from the vehicle body.
  11. REMOVE ABSORBER CONTROL ACTUATOR

    HINT:

    • Use the same procedure for the RH side and LH side.
    • The following procedure is for the LH side.
    1. Turn back the luggage compartment trim cover until the absorber control actuator can be seen.

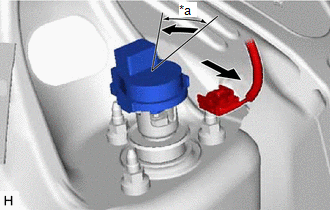

    2. Disconnect the connector.
      GTY507501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 40°
    3. Turn the absorber control actuator 40° counterclockwise to remove it from the rear actuator support bracket.
      NOTE:
      • Do not turn the absorber control actuator more than 40°.
      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
