Removal [09/2014 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

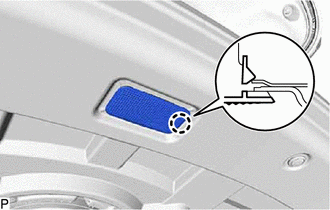

    1. Disengage the claw.
      GTY513931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
  2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB

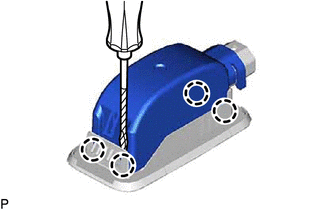

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the shade from the luggage compartment light lens.
      GTY505304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the luggage compartment light bulb from the luggage compartment light lens.
